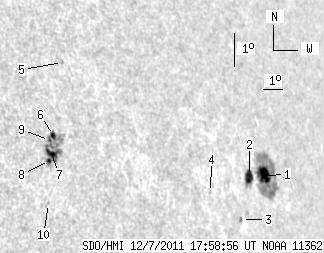

SDO HMI 2011-12-07 17:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29.31 | 124.94 | 26.67 | 115.40 | 7.40 | 134.29 | 57.02 | 278.82 | 0.8412 | -236.2 | -12.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-07 17:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.08 | 69.37 | 11.06 | 69.60 | 7.21 | 137.28 | 60.01 | 278.26 | 0.8703 | -665.2 | -57.4 | |
| 8.01 | 12.78 | 7.79 | 12.43 | 7.18 | 136.45 | 59.17 | 278.29 | 0.8630 | -697.1 | -454.4 | |
| 0.00 | 2.05 | 0.00 | 1.95 | 5.90 | 135.74 | 58.46 | 276.86 | 0.8560 | -402.0 | -297.2 | |
| 0.00 | 1.19 | 0.00 | 1.09 | 6.70 | 134.15 | 56.87 | 277.93 | 0.8419 | -496.0 | -398.3 | |
| 0.00 | 1.11 | 0.00 | 0.87 | 10.60 | 127.46 | 50.18 | 283.62 | 0.7791 | 613.0 | 518.1 | |
| 2.13 | 37.67 | 1.64 | 28.88 | 8.41 | 126.60 | 49.33 | 280.95 | 0.7666 | 585.4 | 227.9 | |
| 5.37 | -6.00 | 4.10 | -6.00 | 7.87 | 126.42 | 49.15 | 280.28 | 0.7638 | 699.3 | 999999 | |
| 1.70 | -6.00 | 1.30 | -6.00 | 7.66 | 126.30 | 49.02 | 280.03 | 0.7622 | 851.6 | 999999 | |
| 1.02 | -6.00 | 0.78 | -6.00 | 8.26 | 126.40 | 49.12 | 280.79 | 0.7640 | 746.5 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.58 | 6.38 | 126.07 | 48.79 | 278.38 | 0.7581 | 312.0 | 249.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
