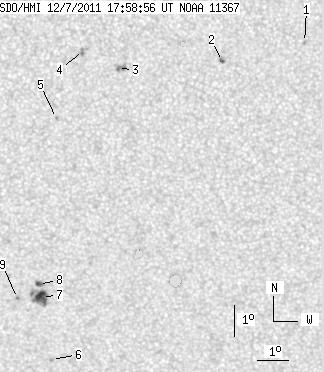

SDO HMI 2011-12-07 17:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.11 | 44.49 | 8.82 | 24.09 | -23.33 | 75.50 | -1.78 | 176.48 | 0.4007 | -720.1 | -596.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-07 17:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.19 | 0.00 | 0.62 | -17.71 | 82.72 | 5.45 | 196.47 | 0.3202 | 881.0 | 665.6 | |
| 1.79 | 3.41 | 0.94 | 1.78 | -18.30 | 80.18 | 2.91 | 188.68 | 0.3206 | 850.1 | 725.8 | |
| 0.34 | 6.14 | 0.18 | 3.21 | -18.52 | 76.92 | -0.36 | 178.94 | 0.3206 | -1002.2 | -763.0 | |
| 0.00 | 3.58 | 0.00 | 1.87 | -17.96 | 75.86 | -1.41 | 175.67 | 0.3121 | -971.0 | -856.2 | |
| 0.00 | 1.45 | 0.00 | 0.77 | -20.08 | 75.00 | -2.28 | 173.82 | 0.3484 | -890.0 | -679.9 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -27.89 | 74.69 | -2.59 | 175.13 | 0.4728 | -827.0 | -736.2 | |
| 11.08 | 22.07 | 6.11 | 12.17 | -25.83 | 74.41 | -2.87 | 174.11 | 0.4414 | -972.7 | -671.3 | |
| 2.90 | 4.09 | 1.59 | 2.25 | -25.41 | 74.32 | -2.96 | 173.82 | 0.4348 | -994.4 | -775.7 | |
| 0.00 | 1.11 | 0.00 | 0.61 | -25.87 | 73.62 | -3.66 | 172.52 | 0.4433 | -957.0 | -859.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
