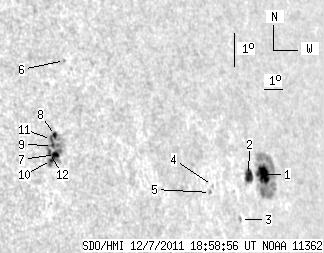

SDO HMI 2011-12-07 18:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29.83 | 116.17 | 27.89 | 109.23 | 7.41 | 134.37 | 57.65 | 278.78 | 0.8470 | -258.7 | 8.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-07 18:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.87 | 66.56 | 13.07 | 68.00 | 7.24 | 137.28 | 60.56 | 278.25 | 0.8749 | -630.2 | -42.9 | |
| 7.84 | 9.63 | 7.76 | 9.53 | 7.21 | 136.43 | 59.71 | 278.28 | 0.8677 | -673.6 | -579.1 | |
| 0.00 | 1.96 | 0.00 | 1.89 | 5.90 | 135.70 | 58.98 | 276.82 | 0.8606 | -413.0 | -315.5 | |
| 0.00 | 1.11 | 0.00 | 1.03 | 6.91 | 134.29 | 57.57 | 278.12 | 0.8485 | -355.0 | -328.2 | |
| 0.00 | 1.11 | 0.00 | 1.03 | 6.70 | 134.14 | 57.42 | 277.88 | 0.8470 | -481.0 | -432.0 | |
| 0.00 | 0.77 | 0.00 | 0.61 | 10.65 | 127.49 | 50.77 | 283.58 | 0.7854 | 625.0 | 514.8 | |
| 3.24 | 35.03 | 2.51 | 27.14 | 7.84 | 126.51 | 49.79 | 280.15 | 0.7709 | 630.5 | 256.5 | |
| 1.79 | -7.00 | 1.39 | -7.00 | 8.41 | 126.61 | 49.88 | 280.87 | 0.7726 | 590.8 | 999999 | |
| 1.19 | -7.00 | 0.92 | -7.00 | 8.11 | 126.41 | 49.69 | 280.51 | 0.7702 | 601.4 | 999999 | |
| 0.43 | -7.00 | 0.33 | -7.00 | 7.66 | 126.30 | 49.57 | 279.95 | 0.7683 | 834.6 | 999999 | |
| 0.68 | -7.00 | 0.53 | -7.00 | 8.29 | 126.40 | 49.68 | 280.75 | 0.7702 | 778.0 | 999999 | |
| 1.79 | -7.00 | 1.38 | -7.00 | 7.90 | 126.24 | 49.52 | 280.27 | 0.7680 | 797.6 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
