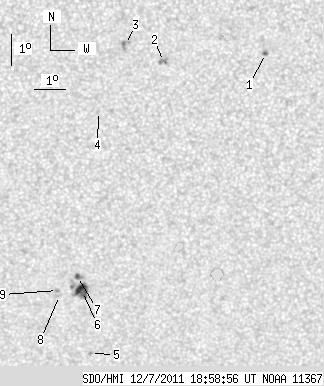

SDO HMI 2011-12-07 18:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.90 | 41.07 | 7.63 | 22.27 | -23.72 | 75.08 | -1.64 | 176.68 | 0.4061 | -760.9 | -674.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-07 18:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.60 | 1.96 | 0.31 | 1.02 | -18.27 | 80.22 | 3.50 | 190.42 | 0.3217 | 1046.9 | 838.8 | |
| 0.00 | 4.60 | 0.00 | 2.40 | -18.52 | 77.05 | 0.33 | 180.97 | 0.3206 | -1032.0 | -891.9 | |
| 0.00 | 4.86 | 0.00 | 2.53 | -17.99 | 75.87 | -0.85 | 177.38 | 0.3121 | -942.0 | -843.8 | |
| 0.00 | 1.11 | 0.00 | 0.58 | -20.09 | 75.01 | -1.71 | 175.34 | 0.3475 | -883.0 | -697.0 | |
| 0.00 | 1.53 | 0.00 | 0.86 | -27.92 | 74.63 | -2.09 | 176.08 | 0.4727 | -899.0 | -728.9 | |
| 11.25 | 20.11 | 6.20 | 11.08 | -25.87 | 74.41 | -2.31 | 175.25 | 0.4410 | -947.7 | -648.2 | |
| 2.05 | 3.92 | 1.12 | 2.15 | -25.38 | 74.25 | -2.47 | 174.83 | 0.4335 | -986.3 | -835.2 | |
| 0.00 | 1.19 | 0.00 | 0.66 | -26.00 | 73.65 | -3.07 | 173.75 | 0.4442 | -690.0 | -531.6 | |
| 0.00 | 1.79 | 0.00 | 0.99 | -25.84 | 73.59 | -3.13 | 173.58 | 0.4418 | -1077.0 | -803.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
