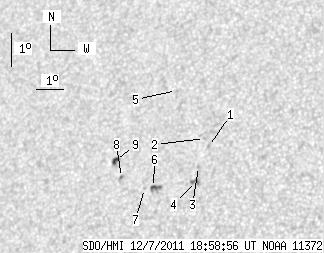

SDO HMI 2011-12-07 18:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.03 | 20.55 | 3.09 | 12.46 | 8.21 | 42.28 | -34.45 | 75.79 | 0.5797 | 16.0 | 47.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-07 18:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.28 | 0.00 | 0.76 | 8.92 | 44.02 | -32.70 | 73.92 | 0.5576 | -655.0 | -501.9 | |
| 0.00 | 0.77 | 0.00 | 0.46 | 9.16 | 43.86 | -32.87 | 73.57 | 0.5608 | -768.0 | -597.9 | |
| 0.00 | 1.28 | 0.00 | 0.76 | 8.33 | 43.73 | -33.00 | 75.08 | 0.5598 | -557.0 | -442.1 | |
| 0.00 | 3.32 | 0.00 | 1.98 | 7.88 | 43.66 | -33.06 | 75.89 | 0.5594 | -911.0 | -819.1 | |
| 0.00 | 0.94 | 0.00 | 0.57 | 10.60 | 42.68 | -34.04 | 71.63 | 0.5820 | -661.0 | -518.8 | |
| 1.96 | 6.05 | 1.19 | 3.67 | 7.70 | 42.17 | -34.56 | 76.71 | 0.5798 | 806.4 | 794.0 | |
| 0.00 | 0.94 | 0.00 | 0.57 | 7.67 | 41.84 | -34.88 | 76.87 | 0.5842 | 702.0 | 554.7 | |
| 0.00 | 2.05 | 0.00 | 1.26 | 8.00 | 40.97 | -35.75 | 76.59 | 0.5971 | 687.0 | 636.8 | |
| 3.07 | 3.92 | 1.90 | 2.43 | 8.50 | 40.69 | -36.03 | 75.85 | 0.6022 | 718.4 | 517.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
