SDO HMI 2011-12-07 19:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.23 | 37.07 | 5.60 | 20.12 | -23.68 | 74.98 | -1.19 | 177.78 | 0.4052 | -777.3 | -647.4 | |
|
previous
or next observation for the same group /

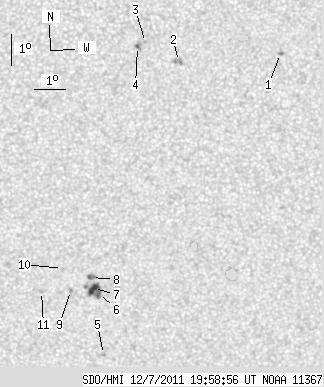

back to the solar disc SDO HMI 2011-12-07 19:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.79 | 0.00 | 0.94 | -18.28 | 80.23 | 4.06 | 192.04 | 0.3235 | 1055.0 | 823.4 | |
| 0.00 | 4.43 | 0.00 | 2.32 | -18.53 | 77.06 | 0.89 | 182.63 | 0.3209 | -876.0 | -858.2 | |
| 0.00 | 1.11 | 0.00 | 0.58 | -17.93 | 76.03 | -0.14 | 179.57 | 0.3107 | -918.0 | -732.3 | |
| 1.45 | 3.83 | 0.76 | 2.00 | -18.06 | 75.78 | -0.39 | 178.81 | 0.3128 | -901.4 | -785.2 | |
| 0.00 | 1.87 | 0.00 | 1.05 | -27.96 | 74.61 | -1.56 | 177.08 | 0.4728 | -819.0 | -629.4 | |
| 2.39 | 15.43 | 1.32 | 8.50 | -25.94 | 74.48 | -1.69 | 176.54 | 0.4414 | -783.9 | -709.4 | |
| 6.39 | -6.00 | 3.52 | -6.00 | -25.77 | 74.32 | -1.85 | 176.18 | 0.4390 | -1068.9 | 999999 | |
| 0.00 | 4.01 | 0.00 | 2.20 | -25.41 | 74.26 | -1.91 | 175.99 | 0.4334 | -1054.0 | -920.5 | |
| 0.00 | 1.62 | 0.00 | 0.89 | -25.84 | 73.56 | -2.61 | 174.64 | 0.4409 | -1023.0 | -783.8 | |
| 0.00 | 1.11 | 0.00 | 0.61 | -25.12 | 73.31 | -2.86 | 173.95 | 0.4300 | -781.0 | -567.8 | |
| 0.00 | 1.87 | 0.00 | 1.03 | -25.87 | 72.61 | -3.56 | 172.72 | 0.4431 | -673.0 | -440.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
