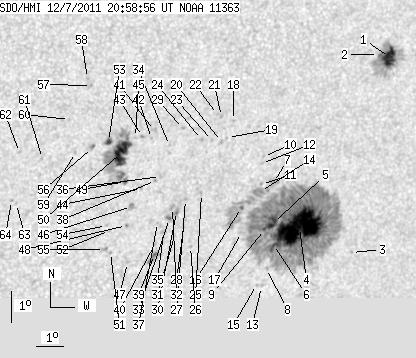

SDO HMI 2011-12-07 20:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 137.13 | 830.68 | 86.49 | 525.25 | -22.08 | 107.78 | 32.17 | 232.53 | 0.6233 | 253.8 | 254.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-07 20:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.32 | 63.66 | 9.13 | 40.58 | -17.51 | 111.05 | 35.43 | 241.36 | 0.6323 | 1053.6 | 382.8 | |
| 0.60 | -1.00 | 0.38 | -1.00 | -17.41 | 110.61 | 34.99 | 241.24 | 0.6265 | 778.4 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.62 | -23.67 | 111.23 | 35.62 | 232.96 | 0.6705 | -620.0 | -538.8 | |
| 81.65 | 554.14 | 52.56 | 356.06 | -22.86 | 108.96 | 33.35 | 232.44 | 0.6413 | 1195.9 | 424.2 | |
| 6.05 | -4.00 | 3.85 | -4.00 | -22.70 | 107.93 | 32.31 | 231.88 | 0.6291 | 1154.9 | 999999 | |
| 0.77 | -4.00 | 0.49 | -4.00 | -23.41 | 108.12 | 32.50 | 231.07 | 0.6362 | 724.2 | 999999 | |
| 0.00 | 6.39 | 0.00 | 4.01 | -21.42 | 107.60 | 31.98 | 233.39 | 0.6165 | 288.0 | 326.8 | |
| 0.00 | 1.53 | 0.00 | 0.99 | -24.18 | 108.07 | 32.45 | 230.00 | 0.6413 | 579.0 | 369.2 | |
| 1.02 | -4.00 | 0.65 | -4.00 | -22.92 | 107.64 | 32.03 | 231.35 | 0.6277 | 837.3 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.48 | -20.60 | 107.03 | 31.41 | 234.12 | 0.6044 | -496.0 | -360.3 | |
| 0.00 | 0.77 | 0.00 | 0.48 | -21.49 | 107.17 | 31.55 | 232.97 | 0.6122 | -436.0 | -367.4 | |
| 0.00 | 1.02 | 0.00 | 0.64 | -20.82 | 107.01 | 31.39 | 233.79 | 0.6057 | -380.0 | -285.2 | |
| 0.00 | 0.60 | 0.00 | 0.39 | -24.77 | 108.05 | 32.43 | 229.22 | 0.6453 | 698.0 | 602.7 | |
| 0.00 | 10.74 | 0.00 | 6.72 | -21.71 | 107.18 | 31.57 | 232.67 | 0.6140 | 469.0 | 480.4 | |
| 0.00 | 0.43 | 0.00 | 0.27 | -24.70 | 107.83 | 32.22 | 229.14 | 0.6427 | 378.0 | 315.2 | |
| 1.19 | 36.73 | 0.75 | 22.93 | -22.22 | 106.60 | 30.98 | 231.49 | 0.6113 | 862.0 | 389.6 | |
| 0.00 | 1.36 | 0.00 | 0.86 | -23.02 | 106.80 | 31.18 | 230.55 | 0.6194 | 258.0 | 266.9 | |
| 0.00 | 0.94 | 0.00 | 0.57 | -19.46 | 105.68 | 30.07 | 234.71 | 0.5809 | -658.0 | -546.7 | |
| 0.00 | 0.60 | 0.00 | 0.36 | -20.00 | 105.58 | 29.96 | 233.83 | 0.5836 | -569.0 | -492.1 | |
| 0.00 | 1.19 | 0.00 | 0.73 | -20.12 | 105.39 | 29.77 | 233.49 | 0.5823 | -582.0 | -491.3 | |
| 0.00 | 1.02 | 0.00 | 0.62 | -19.34 | 105.22 | 29.61 | 234.52 | 0.5747 | -738.0 | -649.7 | |
| 0.00 | 1.19 | 0.00 | 0.72 | -19.27 | 105.07 | 29.45 | 234.49 | 0.5724 | -758.0 | -625.1 | |
| 0.00 | 1.36 | 0.00 | 0.83 | -20.09 | 105.05 | 29.44 | 233.25 | 0.5782 | -672.0 | -584.1 | |
| 0.00 | 1.45 | 0.00 | 0.87 | -20.06 | 104.65 | 29.03 | 232.95 | 0.5734 | -663.0 | -595.9 | |
| 0.00 | 1.62 | 0.00 | 0.99 | -21.77 | 105.02 | 29.40 | 230.79 | 0.5906 | -472.0 | -395.5 | |
| 0.00 | 1.02 | 0.00 | 0.63 | -23.47 | 105.01 | 29.40 | 228.43 | 0.6041 | 528.0 | 443.1 | |
| 0.00 | 1.53 | 0.00 | 0.94 | -21.96 | 104.48 | 28.86 | 230.04 | 0.5862 | -643.0 | -435.0 | |
| 0.00 | 0.68 | 0.00 | 0.42 | -22.63 | 104.59 | 28.98 | 229.21 | 0.5929 | 100.0 | 118.4 | |
| 0.00 | 1.45 | 0.00 | 0.87 | -19.71 | 103.94 | 28.32 | 232.85 | 0.5625 | -895.0 | -651.1 | |
| 0.00 | 3.41 | 0.00 | 2.08 | -22.34 | 104.23 | 28.62 | 229.29 | 0.5867 | -716.0 | -567.6 | |
| 0.00 | 1.19 | 0.00 | 0.73 | -23.11 | 104.34 | 28.72 | 228.31 | 0.5941 | -376.0 | -330.3 | |
| 0.00 | 2.73 | 0.00 | 1.66 | -22.21 | 104.06 | 28.44 | 229.31 | 0.5838 | -778.0 | -647.4 | |
| 1.36 | 2.64 | 0.83 | 1.61 | -22.56 | 104.03 | 28.41 | 228.79 | 0.5863 | -722.6 | -617.0 | |
| 0.00 | 0.77 | 0.00 | 0.46 | -20.25 | 103.54 | 27.92 | 231.69 | 0.5622 | -716.0 | -495.0 | |
| 0.00 | 2.30 | 0.00 | 1.41 | -23.01 | 103.91 | 28.30 | 228.06 | 0.5888 | -616.0 | -436.7 | |
| 0.00 | 1.36 | 0.00 | 0.82 | -21.23 | 103.42 | 27.80 | 230.13 | 0.5687 | -633.0 | -480.8 | |
| 0.00 | 0.77 | 0.00 | 0.47 | -22.69 | 103.62 | 28.01 | 228.23 | 0.5831 | -507.0 | -517.2 | |
| 0.00 | 1.02 | 0.00 | 0.61 | -21.35 | 103.26 | 27.65 | 229.80 | 0.5680 | -768.0 | -634.3 | |
| 1.70 | 6.90 | 1.05 | 4.24 | -23.72 | 103.75 | 28.13 | 226.94 | 0.5931 | -620.7 | -490.9 | |
| 0.00 | 0.77 | 0.00 | 0.47 | -23.40 | 103.67 | 28.06 | 227.31 | 0.5896 | -679.0 | -572.6 | |
| 0.00 | 2.39 | 0.00 | 1.41 | -19.77 | 102.92 | 27.30 | 231.82 | 0.5513 | -836.0 | -673.2 | |
| 0.00 | 0.51 | 0.00 | 0.30 | -20.02 | 102.86 | 27.24 | 231.38 | 0.5526 | -712.0 | -610.0 | |
| 0.00 | 1.53 | 0.00 | 0.91 | -19.96 | 102.53 | 26.91 | 231.16 | 0.5483 | -772.0 | -583.8 | |
| 0.00 | 1.19 | 0.00 | 0.71 | -21.61 | 102.81 | 27.20 | 229.00 | 0.5652 | -938.0 | -645.1 | |
| 0.00 | 0.94 | 0.00 | 0.55 | -19.99 | 102.29 | 26.67 | 230.88 | 0.5458 | -717.0 | -609.0 | |
| 0.00 | 3.49 | 0.00 | 2.10 | -22.18 | 102.57 | 26.96 | 227.95 | 0.5675 | -790.0 | -695.2 | |
| 0.00 | 1.11 | 0.00 | 0.68 | -23.98 | 102.82 | 27.21 | 225.71 | 0.5858 | -573.0 | -479.8 | |
| 0.00 | 1.02 | 0.00 | 0.62 | -22.79 | 102.52 | 26.91 | 227.05 | 0.5722 | -761.0 | -589.2 | |
| 1.96 | 81.39 | 1.17 | 48.02 | -21.38 | 102.20 | 26.58 | 228.73 | 0.5566 | -643.5 | -572.5 | |
| 23.44 | -49.00 | 13.83 | -49.00 | -20.46 | 101.88 | 26.26 | 229.77 | 0.5452 | -1030.0 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.57 | -23.66 | 102.14 | 26.52 | 225.47 | 0.5759 | -545.0 | -460.7 | |
| 0.00 | 1.02 | 0.00 | 0.61 | -22.95 | 101.95 | 26.33 | 226.25 | 0.5676 | -662.0 | -485.9 | |
| 3.07 | 4.86 | 1.80 | 2.85 | -20.12 | 101.36 | 25.75 | 229.77 | 0.5364 | -998.9 | -830.1 | |
| 0.00 | 1.02 | 0.00 | 0.61 | -22.79 | 101.81 | 26.19 | 226.33 | 0.5647 | -765.0 | -624.2 | |
| 0.00 | 2.39 | 0.00 | 1.44 | -23.56 | 101.90 | 26.28 | 225.36 | 0.5726 | -691.0 | -614.2 | |
| 0.00 | 2.22 | 0.00 | 1.29 | -20.31 | 100.84 | 25.22 | 228.94 | 0.5322 | -963.0 | -795.5 | |
| 0.00 | 1.02 | 0.00 | 0.59 | -18.36 | 100.48 | 24.87 | 231.61 | 0.5112 | -712.0 | -606.5 | |
| 0.00 | 1.11 | 0.00 | 0.64 | -18.14 | 100.31 | 24.70 | 231.79 | 0.5074 | -722.0 | -621.7 | |
| 0.00 | 1.02 | 0.00 | 0.60 | -20.46 | 100.27 | 24.66 | 228.10 | 0.5273 | -833.0 | -548.9 | |
| 0.00 | 1.28 | 0.00 | 0.74 | -19.42 | 99.89 | 24.28 | 229.28 | 0.5137 | -743.0 | -508.0 | |
| 0.00 | 0.51 | 0.00 | 0.30 | -20.65 | 99.16 | 23.55 | 226.58 | 0.5168 | -656.0 | -509.7 | |
| 0.00 | 0.85 | 0.00 | 0.49 | -20.46 | 98.34 | 22.73 | 225.91 | 0.5061 | -771.0 | -648.3 | |
| 0.00 | 1.11 | 0.00 | 0.64 | -22.08 | 98.51 | 22.89 | 223.71 | 0.5237 | -631.0 | -487.5 | |
| 0.00 | 0.77 | 0.00 | 0.44 | -21.98 | 98.32 | 22.70 | 223.63 | 0.5208 | -696.0 | -682.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
