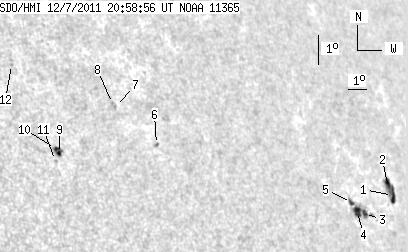

SDO HMI 2011-12-07 20:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.26 | 47.38 | 24.96 | 48.68 | 17.10 | 135.06 | 59.44 | 289.85 | 0.8724 | 63.9 | 43.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-07 20:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.45 | 16.62 | 6.34 | 19.32 | 16.86 | 139.25 | 63.63 | 288.65 | 0.9068 | -277.8 | -127.6 | |
| 4.94 | -1.00 | 5.74 | -1.00 | 17.20 | 139.11 | 63.49 | 289.04 | 0.9062 | -457.1 | 999999 | |
| 2.56 | 18.75 | 2.76 | 20.06 | 16.30 | 137.04 | 61.42 | 288.38 | 0.8901 | 254.0 | 157.5 | |
| 5.28 | -3.00 | 5.62 | -3.00 | 16.36 | 136.62 | 61.00 | 288.52 | 0.8870 | 631.5 | 999999 | |
| 2.39 | -3.00 | 2.52 | -3.00 | 16.64 | 136.39 | 60.77 | 288.87 | 0.8855 | 457.4 | 999999 | |
| 0.00 | 1.70 | 0.00 | 1.41 | 18.44 | 126.40 | 50.78 | 293.23 | 0.8021 | -622.0 | -515.0 | |
| 0.00 | 1.36 | 0.00 | 1.10 | 19.63 | 124.89 | 49.27 | 295.15 | 0.7908 | -629.0 | -540.2 | |
| 0.00 | 1.19 | 0.00 | 0.96 | 19.72 | 124.78 | 49.16 | 295.30 | 0.7901 | -596.0 | -458.2 | |
| 1.28 | 5.80 | 0.96 | 4.36 | 18.16 | 121.72 | 46.11 | 294.41 | 0.7543 | 774.9 | 621.1 | |
| 1.36 | -9.00 | 1.02 | -9.00 | 18.31 | 121.60 | 45.98 | 294.65 | 0.7535 | 609.1 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.83 | 17.94 | 121.47 | 45.85 | 294.22 | 0.7509 | 677.0 | 517.9 | |
| 0.00 | 0.85 | 0.00 | 0.64 | 20.95 | 120.58 | 44.97 | 298.39 | 0.7525 | 702.0 | 590.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
