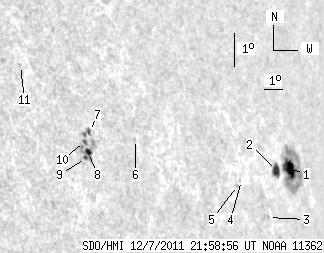

SDO HMI 2011-12-07 21:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.49 | 103.55 | 25.24 | 104.33 | 7.41 | 135.14 | 60.08 | 278.55 | 0.8688 | -314.0 | -2.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-07 21:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.25 | 66.39 | 12.09 | 71.76 | 7.29 | 137.40 | 62.34 | 278.18 | 0.8895 | -592.7 | -42.3 | |
| 7.16 | 9.03 | 7.49 | 9.44 | 7.23 | 136.56 | 61.50 | 278.18 | 0.8827 | -599.2 | -493.2 | |
| 0.00 | 1.28 | 0.00 | 1.30 | 5.83 | 135.77 | 60.71 | 276.64 | 0.8755 | -306.0 | -290.9 | |
| 0.00 | 0.43 | 0.00 | 0.42 | 6.93 | 134.37 | 59.30 | 278.01 | 0.8641 | -103.0 | -170.0 | |
| 0.00 | 1.36 | 0.00 | 1.32 | 6.78 | 134.10 | 59.04 | 277.86 | 0.8617 | -539.0 | -480.6 | |
| 0.00 | 1.02 | 0.00 | 0.87 | 8.16 | 128.84 | 53.78 | 280.03 | 0.8132 | -597.0 | -449.8 | |
| 1.45 | 4.86 | 1.17 | 3.90 | 8.40 | 126.61 | 51.55 | 280.62 | 0.7905 | 406.1 | 602.2 | |
| 3.24 | 18.24 | 2.59 | 14.61 | 7.77 | 126.45 | 51.39 | 279.85 | 0.7881 | 535.1 | 270.0 | |
| 0.77 | -8.00 | 0.61 | -8.00 | 7.59 | 126.28 | 51.21 | 279.65 | 0.7860 | 717.1 | 999999 | |
| 1.62 | -8.00 | 1.29 | -8.00 | 8.10 | 126.32 | 51.25 | 280.29 | 0.7870 | 620.9 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.71 | 10.38 | 123.77 | 48.70 | 283.64 | 0.7628 | 605.0 | 500.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
