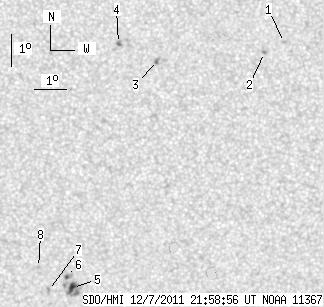

SDO HMI 2011-12-07 21:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.41 | 32.64 | 4.07 | 17.74 | -23.85 | 75.10 | 0.03 | 180.72 | 0.4084 | -639.4 | -567.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-07 21:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.53 | 0.00 | 0.80 | -17.98 | 80.92 | 5.86 | 197.41 | 0.3261 | 801.0 | 659.7 | |
| 0.00 | 1.79 | 0.00 | 0.94 | -18.29 | 80.31 | 5.25 | 195.41 | 0.3282 | 934.0 | 722.7 | |
| 0.00 | 2.73 | 0.00 | 1.43 | -18.54 | 76.98 | 1.92 | 185.67 | 0.3221 | -1041.0 | -852.6 | |
| 0.51 | 2.30 | 0.27 | 1.20 | -18.01 | 75.76 | 0.70 | 182.14 | 0.3119 | -1036.3 | -882.9 | |
| 5.45 | 20.37 | 3.00 | 11.21 | -25.78 | 74.30 | -0.77 | 178.41 | 0.4381 | -1085.5 | -732.0 | |
| 1.45 | -5.00 | 0.80 | -5.00 | -25.42 | 74.10 | -0.96 | 177.98 | 0.4325 | -986.9 | 999999 | |
| 0.00 | 2.56 | 0.00 | 1.41 | -25.88 | 73.51 | -1.56 | 176.80 | 0.4402 | -991.0 | -781.1 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -25.13 | 73.19 | -1.87 | 176.02 | 0.4286 | -780.0 | -536.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
