SDO HMI 2011-12-07 21:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.04 | 29.40 | 7.72 | 17.48 | 8.19 | 42.39 | -32.67 | 75.16 | 0.5550 | 71.7 | 47.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-07 21:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

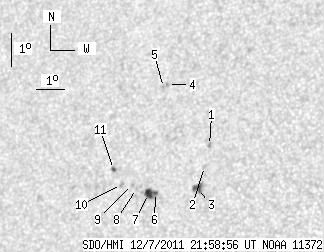

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.62 | 0.00 | 0.95 | 9.12 | 44.00 | -31.06 | 72.82 | 0.5354 | -801.0 | -706.6 | |
| 0.00 | 1.70 | 0.00 | 1.00 | 8.50 | 43.89 | -31.18 | 74.01 | 0.5348 | -648.0 | -473.0 | |
| 4.86 | 6.56 | 2.84 | 3.84 | 7.84 | 43.70 | -31.37 | 75.29 | 0.5352 | -856.4 | -698.9 | |
| 0.00 | 1.19 | 0.00 | 0.72 | 10.95 | 42.31 | -32.75 | 70.41 | 0.5660 | -815.0 | -718.7 | |
| 0.00 | 1.02 | 0.00 | 0.61 | 10.86 | 42.18 | -32.88 | 70.63 | 0.5674 | -626.0 | -534.2 | |
| 1.36 | 10.65 | 0.81 | 6.35 | 7.72 | 42.23 | -32.84 | 76.07 | 0.5558 | 812.3 | 583.0 | |
| 5.63 | -6.00 | 3.35 | -6.00 | 7.69 | 41.98 | -33.08 | 76.21 | 0.5592 | 928.1 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.56 | 7.84 | 41.54 | -33.52 | 76.10 | 0.5658 | 632.0 | 497.6 | |
| 0.00 | 1.11 | 0.00 | 0.67 | 7.96 | 41.39 | -33.68 | 75.95 | 0.5683 | 645.0 | 548.9 | |
| 0.00 | 2.05 | 0.00 | 1.23 | 7.96 | 40.99 | -34.07 | 76.09 | 0.5739 | 804.0 | 609.8 | |
| 1.19 | 2.56 | 0.72 | 1.55 | 8.41 | 40.66 | -34.41 | 75.44 | 0.5798 | 735.9 | 571.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
