SDO HMI 2011-12-07 22:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.17 | 94.45 | 26.48 | 96.91 | 7.40 | 135.22 | 60.70 | 278.50 | 0.8741 | -248.5 | 42.8 | |
|
previous
or next observation for the same group /

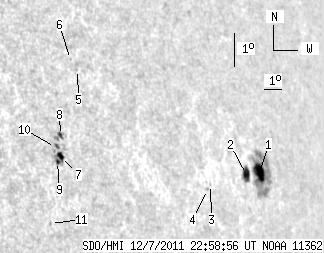

back to the solar disc SDO HMI 2011-12-07 22:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.08 | 60.35 | 12.14 | 66.46 | 7.28 | 137.44 | 62.92 | 278.13 | 0.8941 | -582.6 | -33.2 | |
| 8.27 | 9.72 | 8.81 | 10.35 | 7.22 | 136.58 | 62.06 | 278.13 | 0.8873 | -572.0 | -436.5 | |
| 0.00 | 0.85 | 0.00 | 0.84 | 6.92 | 134.28 | 59.77 | 277.96 | 0.8681 | -258.0 | -249.3 | |
| 0.00 | 1.02 | 0.00 | 1.01 | 6.77 | 134.08 | 59.56 | 277.81 | 0.8662 | -517.0 | -470.2 | |
| 0.00 | 0.77 | 0.00 | 0.65 | 10.37 | 127.82 | 53.30 | 282.81 | 0.8111 | 472.0 | 337.3 | |
| 0.00 | 0.68 | 0.00 | 0.57 | 10.67 | 127.54 | 53.03 | 283.22 | 0.8087 | 328.0 | 360.4 | |
| 3.49 | 11.25 | 2.83 | 9.10 | 7.76 | 126.43 | 51.91 | 279.78 | 0.7937 | 536.4 | 465.4 | |
| 1.88 | 5.63 | 1.53 | 4.57 | 8.39 | 126.54 | 52.03 | 280.55 | 0.7956 | 494.3 | 531.4 | |
| 1.45 | -7.00 | 1.17 | -7.00 | 7.61 | 126.26 | 51.74 | 279.61 | 0.7917 | 720.1 | 999999 | |
| 0.00 | 3.07 | 0.00 | 2.48 | 8.03 | 126.23 | 51.72 | 280.14 | 0.7919 | 520.0 | 591.1 | |
| 0.00 | 1.11 | 0.00 | 0.88 | 5.77 | 125.65 | 51.13 | 277.34 | 0.7834 | 379.0 | 339.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
