SDO HMI 2011-12-07 22:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 40.49 | 194.51 | 24.05 | 115.72 | 18.50 | 103.10 | 28.59 | 304.89 | 0.5554 | -394.0 | -305.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-07 22:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

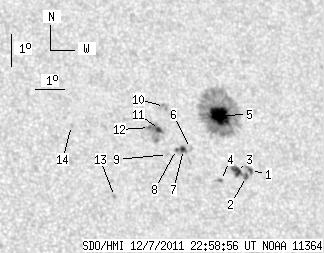

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.22 | 15.26 | 1.32 | 9.07 | 17.06 | 104.27 | 29.75 | 301.65 | 0.5595 | 602.5 | 663.0 | |
| 2.39 | -1.00 | 1.42 | -1.00 | 16.88 | 104.09 | 29.58 | 301.49 | 0.5561 | 760.5 | 999999 | |
| 6.22 | -1.00 | 3.69 | -1.00 | 17.03 | 103.76 | 29.25 | 302.00 | 0.5531 | 773.1 | 999999 | |
| 0.94 | 2.64 | 0.55 | 1.56 | 16.75 | 103.15 | 28.64 | 302.05 | 0.5436 | 737.8 | 608.7 | |
| 21.48 | 140.90 | 12.84 | 84.26 | 18.77 | 103.47 | 28.96 | 304.98 | 0.5618 | -1176.7 | -357.5 | |
| 0.00 | 1.36 | 0.00 | 0.80 | 17.74 | 102.26 | 27.75 | 304.41 | 0.5397 | -778.0 | -711.6 | |
| 2.64 | 6.31 | 1.55 | 3.69 | 17.71 | 102.01 | 27.50 | 304.59 | 0.5364 | -906.9 | -494.1 | |
| 1.19 | -7.00 | 0.70 | -7.00 | 17.71 | 101.77 | 27.26 | 304.81 | 0.5335 | 391.4 | 999999 | |
| 0.00 | 0.85 | 0.00 | 0.50 | 17.56 | 101.43 | 26.92 | 304.86 | 0.5281 | 660.0 | 483.5 | |
| 0.00 | 4.35 | 0.00 | 2.56 | 19.05 | 101.58 | 27.06 | 307.12 | 0.5415 | -804.0 | -784.4 | |
| 2.13 | 20.12 | 1.24 | 11.73 | 18.33 | 101.28 | 26.77 | 306.26 | 0.5323 | -1027.1 | -281.2 | |
| 1.28 | -11.00 | 0.74 | -11.00 | 18.39 | 100.94 | 26.43 | 306.68 | 0.5288 | 517.6 | 999999 | |
| 0.00 | 1.53 | 0.00 | 0.87 | 16.26 | 99.42 | 24.90 | 304.61 | 0.4932 | 892.0 | 711.4 | |
| 0.00 | 1.19 | 0.00 | 0.68 | 18.46 | 98.27 | 23.75 | 309.56 | 0.4976 | 580.0 | 530.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
