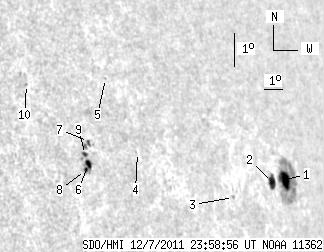

SDO HMI 2011-12-07 23:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.08 | 84.57 | 26.81 | 89.49 | 7.43 | 135.60 | 61.64 | 278.45 | 0.8821 | -280.7 | 38.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-07 23:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.34 | 58.05 | 12.67 | 65.31 | 7.31 | 137.44 | 63.48 | 278.13 | 0.8984 | -576.9 | -3.4 | |
| 7.67 | 8.35 | 8.33 | 9.07 | 7.22 | 136.62 | 62.66 | 278.09 | 0.8920 | -547.0 | -461.9 | |
| 0.00 | 1.11 | 0.00 | 1.11 | 6.77 | 134.07 | 60.11 | 277.77 | 0.8709 | -471.0 | -434.3 | |
| 0.00 | 0.60 | 0.00 | 0.52 | 8.12 | 128.97 | 55.01 | 279.84 | 0.8254 | -429.0 | -424.7 | |
| 0.00 | 0.77 | 0.00 | 0.65 | 10.33 | 127.82 | 53.86 | 282.68 | 0.8166 | 463.0 | 402.2 | |
| 3.32 | 7.59 | 2.73 | 6.22 | 7.79 | 126.43 | 52.46 | 279.75 | 0.7994 | 490.8 | 431.7 | |
| 1.11 | 4.01 | 0.91 | 3.29 | 8.45 | 126.55 | 52.59 | 280.55 | 0.8014 | 509.6 | 476.4 | |
| 1.11 | -6.00 | 0.91 | -6.00 | 7.58 | 126.24 | 52.28 | 279.51 | 0.7973 | 668.2 | 999999 | |
| 1.53 | 3.41 | 1.26 | 2.79 | 8.06 | 126.33 | 52.37 | 280.09 | 0.7987 | 545.8 | 573.5 | |
| 0.00 | 0.68 | 0.00 | 0.53 | 10.15 | 123.92 | 49.96 | 283.12 | 0.7761 | 557.0 | 504.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
