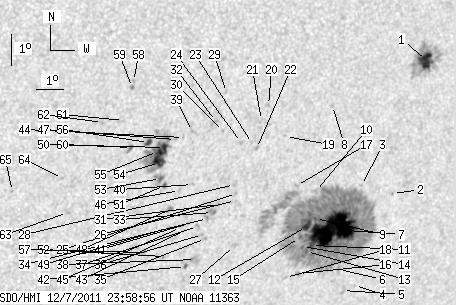

SDO HMI 2011-12-07 23:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 131.20 | 809.85 | 84.52 | 521.41 | -22.15 | 107.89 | 33.92 | 233.76 | 0.6426 | 297.7 | 245.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-07 23:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.66 | 62.57 | 9.56 | 40.76 | -17.53 | 111.10 | 37.14 | 242.33 | 0.6524 | 1025.7 | 383.4 | |
| 0.00 | 1.02 | 0.00 | 0.68 | -21.70 | 110.89 | 36.93 | 236.43 | 0.6724 | -484.0 | -383.2 | |
| 0.00 | 1.19 | 0.00 | 0.78 | -21.45 | 109.59 | 35.63 | 235.95 | 0.6567 | 701.0 | 496.3 | |
| 0.00 | 0.77 | 0.00 | 0.52 | -24.66 | 110.31 | 36.35 | 232.19 | 0.6842 | -639.0 | -489.3 | |
| 0.00 | 3.58 | 0.00 | 2.41 | -24.83 | 109.88 | 35.92 | 231.70 | 0.6809 | -156.0 | -156.4 | |
| 0.00 | 2.90 | 0.00 | 1.93 | -24.14 | 109.50 | 35.54 | 232.31 | 0.6726 | 53.0 | -26.0 | |
| 80.13 | 582.23 | 52.56 | 379.99 | -22.85 | 108.90 | 34.94 | 233.60 | 0.6580 | 1140.1 | 424.8 | |
| 0.00 | 1.19 | 0.00 | 0.75 | -18.92 | 107.83 | 33.87 | 238.34 | 0.6217 | -620.0 | -482.8 | |
| 1.28 | -7.00 | 0.83 | -7.00 | -22.50 | 108.10 | 34.14 | 233.52 | 0.6472 | 1124.2 | 999999 | |
| 0.00 | 2.47 | 0.00 | 1.59 | -21.64 | 107.86 | 33.90 | 234.53 | 0.6389 | 522.0 | 510.4 | |
| 1.79 | -7.00 | 1.17 | -7.00 | -23.36 | 108.19 | 34.23 | 232.43 | 0.6539 | 720.6 | 999999 | |
| 5.71 | -7.00 | 3.70 | -7.00 | -22.75 | 107.82 | 33.86 | 232.98 | 0.6459 | 1151.9 | 999999 | |
| 0.94 | -7.00 | 0.61 | -7.00 | -23.56 | 108.06 | 34.09 | 232.07 | 0.6538 | 567.0 | 999999 | |
| 0.85 | -7.00 | 0.55 | -7.00 | -23.40 | 107.85 | 33.89 | 232.14 | 0.6505 | 578.2 | 999999 | |
| 1.11 | -7.00 | 0.72 | -7.00 | -23.11 | 107.65 | 33.69 | 232.38 | 0.6465 | 805.5 | 999999 | |
| 0.00 | 2.30 | 0.00 | 1.51 | -24.27 | 107.96 | 34.00 | 231.07 | 0.6576 | 656.0 | 351.7 | |
| 0.00 | 1.70 | 0.00 | 1.08 | -21.44 | 107.09 | 33.12 | 234.24 | 0.6291 | -487.0 | -274.1 | |
| 0.00 | 1.45 | 0.00 | 0.95 | -24.40 | 107.49 | 33.53 | 230.56 | 0.6537 | 483.0 | 447.8 | |
| 0.00 | 0.43 | 0.00 | 0.27 | -19.89 | 106.30 | 32.33 | 235.86 | 0.6099 | -574.0 | -496.0 | |
| 0.00 | 1.45 | 0.00 | 0.89 | -18.92 | 105.45 | 31.49 | 236.66 | 0.5937 | -639.0 | -566.5 | |
| 0.00 | 1.96 | 0.00 | 1.21 | -19.39 | 105.30 | 31.33 | 235.85 | 0.5950 | -650.0 | -599.1 | |
| 0.00 | 1.88 | 0.00 | 1.16 | -20.27 | 105.31 | 31.34 | 234.57 | 0.6012 | -616.0 | -496.6 | |
| 0.00 | 0.77 | 0.00 | 0.47 | -20.11 | 105.12 | 31.16 | 234.65 | 0.5980 | -765.0 | -550.7 | |
| 0.00 | 1.79 | 0.00 | 1.10 | -20.08 | 104.71 | 30.75 | 234.37 | 0.5930 | -564.0 | -447.2 | |
| 0.00 | 0.77 | 0.00 | 0.48 | -21.69 | 104.90 | 30.94 | 232.21 | 0.6067 | -572.0 | -480.8 | |
| 0.00 | 0.34 | 0.00 | 0.21 | -21.92 | 104.91 | 30.95 | 231.91 | 0.6086 | -406.0 | -467.8 | |
| 0.00 | 2.39 | 0.00 | 1.51 | -23.36 | 105.24 | 31.28 | 230.19 | 0.6228 | 631.0 | 528.8 | |
| 0.00 | 1.53 | 0.00 | 0.95 | -21.41 | 104.76 | 30.79 | 232.50 | 0.6031 | -605.0 | -375.4 | |
| 0.00 | 1.36 | 0.00 | 0.82 | -18.51 | 103.84 | 29.88 | 236.03 | 0.5719 | -780.0 | -609.9 | |
| 0.00 | 1.11 | 0.00 | 0.67 | -19.73 | 103.98 | 30.02 | 234.30 | 0.5822 | -750.0 | -614.2 | |
| 0.00 | 1.62 | 0.00 | 1.00 | -22.04 | 104.31 | 30.35 | 231.24 | 0.6030 | -699.0 | -561.7 | |
| 0.00 | 1.45 | 0.00 | 0.88 | -19.42 | 103.66 | 29.70 | 234.50 | 0.5762 | -785.0 | -632.7 | |
| 0.00 | 3.67 | 0.00 | 2.27 | -22.30 | 104.15 | 30.19 | 230.74 | 0.6032 | -672.0 | -656.5 | |
| 0.00 | 3.24 | 0.00 | 2.01 | -22.49 | 104.01 | 30.05 | 230.36 | 0.6031 | -726.0 | -459.2 | |
| 0.00 | 1.70 | 0.00 | 1.06 | -23.13 | 104.10 | 30.14 | 229.55 | 0.6090 | -550.0 | -439.3 | |
| 0.00 | 0.85 | 0.00 | 0.53 | -23.00 | 103.95 | 29.99 | 229.60 | 0.6065 | -557.0 | -441.9 | |
| 0.00 | 2.13 | 0.00 | 1.32 | -22.75 | 103.71 | 29.74 | 229.74 | 0.6018 | -659.0 | -556.3 | |
| 0.00 | 6.56 | 0.00 | 4.10 | -23.81 | 103.90 | 29.93 | 228.46 | 0.6122 | -183.0 | -256.9 | |
| 0.00 | 1.11 | 0.00 | 0.67 | -19.73 | 102.86 | 28.90 | 233.35 | 0.5692 | -815.0 | -605.2 | |
| 0.00 | 0.77 | 0.00 | 0.47 | -21.41 | 103.21 | 29.25 | 231.20 | 0.5860 | -694.0 | -566.6 | |
| 0.00 | 1.02 | 0.00 | 0.63 | -22.65 | 103.35 | 29.39 | 229.57 | 0.5973 | -767.0 | -620.4 | |
| 1.45 | 2.73 | 0.90 | 1.70 | -24.04 | 103.58 | 29.62 | 227.88 | 0.6108 | -535.9 | -431.9 | |
| 0.00 | 0.60 | 0.00 | 0.37 | -22.87 | 103.26 | 29.30 | 229.18 | 0.5981 | -585.0 | -508.9 | |
| 0.00 | 1.19 | 0.00 | 0.72 | -19.92 | 102.58 | 28.62 | 232.82 | 0.5673 | -643.0 | -565.3 | |
| 0.00 | 0.68 | 0.00 | 0.42 | -22.78 | 103.09 | 29.13 | 229.16 | 0.5955 | -461.0 | -472.4 | |
| 0.00 | 1.45 | 0.00 | 0.88 | -21.60 | 102.78 | 28.82 | 230.55 | 0.5827 | -709.0 | -552.5 | |
| 0.00 | 2.05 | 0.00 | 1.23 | -19.98 | 102.30 | 28.34 | 232.48 | 0.5647 | -690.0 | -576.8 | |
| 0.00 | 2.56 | 0.00 | 1.56 | -22.20 | 102.55 | 28.59 | 229.48 | 0.5851 | -910.0 | -749.5 | |
| 0.00 | 1.19 | 0.00 | 0.73 | -22.78 | 102.68 | 28.72 | 228.80 | 0.5912 | -672.0 | -580.1 | |
| 3.50 | 64.79 | 2.09 | 38.71 | -20.23 | 101.96 | 28.00 | 231.80 | 0.5627 | -959.9 | -640.0 | |
| 1.79 | 2.22 | 1.08 | 1.34 | -21.44 | 102.21 | 28.24 | 230.26 | 0.5751 | -652.3 | -560.2 | |
| 0.00 | 0.94 | 0.00 | 0.58 | -23.71 | 102.68 | 28.72 | 227.52 | 0.5989 | -633.0 | -522.1 | |
| 1.88 | 6.90 | 1.13 | 4.16 | -21.21 | 102.02 | 28.05 | 230.40 | 0.5712 | -849.8 | -655.5 | |
| 8.01 | -50.00 | 4.80 | -50.00 | -20.71 | 101.88 | 27.91 | 231.02 | 0.5656 | -856.4 | 999999 | |
| 3.67 | -50.00 | 2.19 | -50.00 | -20.36 | 101.74 | 27.77 | 231.40 | 0.5612 | -1125.7 | 999999 | |
| 2.98 | 4.52 | 1.77 | 2.68 | -20.08 | 101.36 | 27.40 | 231.48 | 0.5546 | -951.7 | -648.6 | |
| 0.00 | 1.62 | 0.00 | 0.99 | -23.58 | 101.96 | 28.00 | 227.02 | 0.5902 | -694.0 | -607.6 | |
| 0.00 | 1.28 | 0.00 | 0.75 | -18.17 | 100.49 | 26.53 | 233.63 | 0.5293 | -623.0 | -549.8 | |
| 0.00 | 1.62 | 0.00 | 0.94 | -18.35 | 100.49 | 26.53 | 233.33 | 0.5307 | -753.0 | -663.7 | |
| 1.45 | 3.84 | 0.86 | 2.27 | -20.23 | 100.79 | 26.83 | 230.70 | 0.5494 | -872.5 | -643.9 | |
| 0.00 | 0.94 | 0.00 | 0.55 | -19.38 | 100.35 | 26.39 | 231.57 | 0.5374 | -514.0 | -427.3 | |
| 0.00 | 1.28 | 0.00 | 0.75 | -19.45 | 99.63 | 25.67 | 230.75 | 0.5296 | -715.0 | -623.7 | |
| 0.00 | 1.96 | 0.00 | 1.16 | -22.29 | 98.92 | 24.96 | 225.77 | 0.5471 | -661.0 | -494.7 | |
| 0.00 | 1.11 | 0.00 | 0.65 | -21.21 | 98.55 | 24.59 | 226.93 | 0.5331 | -702.0 | -518.8 | |
| 0.00 | 1.11 | 0.00 | 0.64 | -21.62 | 96.88 | 22.92 | 224.43 | 0.5193 | -769.0 | -661.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
