SDO HMI 2011-12-07 23:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 43.40 | 190.00 | 25.94 | 113.60 | 18.47 | 103.06 | 29.10 | 304.43 | 0.5613 | -407.6 | -282.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-07 23:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

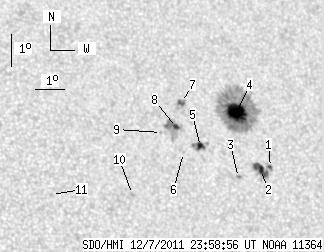

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.45 | 3.24 | 0.87 | 1.94 | 17.06 | 104.36 | 30.40 | 301.16 | 0.5676 | 577.4 | 520.1 | |
| 9.55 | 12.10 | 5.71 | 7.24 | 17.00 | 103.99 | 30.03 | 301.34 | 0.5626 | 841.8 | 658.3 | |
| 0.00 | 1.79 | 0.00 | 1.06 | 16.75 | 103.17 | 29.21 | 301.59 | 0.5507 | 734.0 | 659.3 | |
| 24.04 | 133.15 | 14.44 | 80.08 | 18.76 | 103.46 | 29.50 | 304.54 | 0.5682 | -1160.7 | -352.4 | |
| 3.58 | 9.80 | 2.11 | 5.77 | 17.71 | 101.99 | 28.03 | 304.12 | 0.5429 | -861.6 | -460.6 | |
| 0.00 | 0.60 | 0.00 | 0.35 | 17.52 | 101.36 | 27.40 | 304.37 | 0.5339 | 374.0 | 289.4 | |
| 2.73 | 5.80 | 1.61 | 3.42 | 19.08 | 101.56 | 27.60 | 306.67 | 0.5481 | -837.1 | -641.3 | |
| 2.05 | 19.86 | 1.20 | 11.64 | 18.30 | 101.25 | 27.29 | 305.73 | 0.5384 | -1026.1 | -218.2 | |
| 0.00 | 0.94 | 0.00 | 0.55 | 18.14 | 100.70 | 26.74 | 305.99 | 0.5306 | 618.0 | 514.9 | |
| 0.00 | 1.53 | 0.00 | 0.88 | 16.22 | 99.41 | 25.45 | 304.03 | 0.4998 | 808.0 | 641.4 | |
| 0.00 | 1.19 | 0.00 | 0.67 | 16.22 | 96.68 | 22.72 | 306.91 | 0.4657 | 703.0 | 447.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
