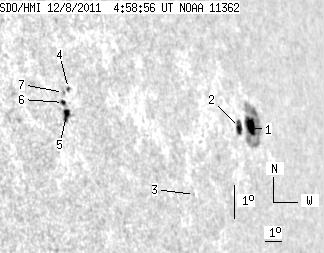

SDO HMI 2011-12-08 04:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.69 | 72.56 | 24.91 | 85.39 | 7.35 | 135.92 | 64.70 | 278.16 | 0.9057 | -189.5 | -13.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-08 04:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.84 | 50.82 | 9.76 | 63.65 | 7.29 | 137.57 | 66.35 | 277.95 | 0.9191 | -532.6 | -28.0 | |
| 6.57 | 7.76 | 7.91 | 9.35 | 7.29 | 136.75 | 65.53 | 278.00 | 0.9135 | -536.8 | -370.9 | |
| 0.00 | 0.85 | 0.00 | 0.90 | 5.30 | 133.24 | 62.02 | 275.99 | 0.8861 | 285.0 | 220.8 | |
| 1.45 | 1.88 | 1.28 | 1.65 | 8.45 | 126.59 | 55.37 | 280.23 | 0.8293 | 381.8 | 330.2 | |
| 4.78 | 7.50 | 4.17 | 6.56 | 7.65 | 126.32 | 55.10 | 279.29 | 0.8259 | 551.3 | 96.1 | |
| 2.05 | 2.47 | 1.79 | 2.16 | 8.04 | 126.24 | 55.02 | 279.77 | 0.8255 | 445.5 | 384.6 | |
| 0.00 | 1.28 | 0.00 | 1.12 | 8.33 | 126.30 | 55.08 | 280.12 | 0.8263 | 476.0 | 488.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
