SDO HMI 2011-12-08 05:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 124.92 | 728.54 | 83.48 | 488.86 | -22.10 | 107.82 | 37.14 | 236.02 | 0.6766 | 308.6 | 282.0 | |
|
previous
or next observation for the same group /

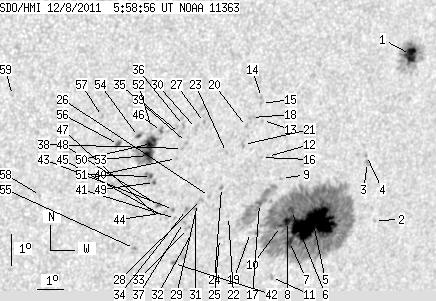

back to the solar disc SDO HMI 2011-12-08 05:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.74 | 54.49 | 7.33 | 37.22 | -17.51 | 111.13 | 40.45 | 244.06 | 0.6904 | 1077.0 | 398.5 | |
| 0.00 | 1.02 | 0.00 | 0.72 | -22.74 | 111.28 | 40.61 | 237.22 | 0.7163 | 466.0 | 390.9 | |
| 0.00 | 2.22 | 0.00 | 1.53 | -20.89 | 110.36 | 39.69 | 239.13 | 0.6974 | -632.0 | -479.9 | |
| 0.00 | 1.02 | 0.00 | 0.70 | -20.67 | 110.25 | 39.57 | 239.36 | 0.6951 | -681.0 | -569.9 | |
| 74.19 | 502.33 | 50.68 | 342.15 | -22.83 | 108.78 | 38.10 | 235.69 | 0.6909 | 1153.3 | 420.8 | |
| 3.33 | -5.00 | 2.23 | -5.00 | -22.42 | 107.75 | 37.08 | 235.62 | 0.6777 | 1162.4 | 999999 | |
| 3.50 | -5.00 | 2.37 | -5.00 | -23.41 | 107.99 | 37.32 | 234.46 | 0.6860 | 740.1 | 999999 | |
| 3.33 | -5.00 | 2.24 | -5.00 | -22.77 | 107.70 | 37.03 | 235.12 | 0.6792 | 1169.2 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.62 | -21.39 | 107.05 | 36.37 | 236.54 | 0.6642 | -382.0 | -248.6 | |
| 1.45 | -5.00 | 0.97 | -5.00 | -22.93 | 107.47 | 36.80 | 234.77 | 0.6777 | 948.2 | 999999 | |
| 0.00 | 1.96 | 0.00 | 1.34 | -24.58 | 107.66 | 36.98 | 232.75 | 0.6896 | 617.0 | 560.2 | |
| 0.00 | 1.11 | 0.00 | 0.72 | -20.70 | 106.30 | 35.63 | 237.03 | 0.6519 | -390.0 | -295.0 | |
| 0.00 | 1.28 | 0.00 | 0.82 | -19.56 | 105.81 | 35.14 | 238.30 | 0.6397 | -571.0 | -430.3 | |
| 0.00 | 1.02 | 0.00 | 0.65 | -18.84 | 105.60 | 34.92 | 239.19 | 0.6331 | -690.0 | -559.5 | |
| 0.00 | 1.45 | 0.00 | 0.93 | -19.03 | 105.64 | 34.97 | 238.95 | 0.6347 | -674.0 | -526.0 | |
| 0.00 | 0.68 | 0.00 | 0.44 | -20.73 | 106.08 | 35.40 | 236.84 | 0.6495 | -391.0 | -315.1 | |
| 1.79 | 47.92 | 1.18 | 31.57 | -22.19 | 106.41 | 35.74 | 235.07 | 0.6620 | 635.5 | 422.3 | |
| 0.00 | 2.47 | 0.00 | 1.58 | -19.47 | 105.37 | 34.69 | 238.15 | 0.6340 | -685.0 | -548.1 | |
| 0.00 | 1.02 | 0.00 | 0.68 | -23.12 | 106.34 | 35.66 | 233.78 | 0.6670 | 319.0 | 339.4 | |
| 0.00 | 1.45 | 0.00 | 0.93 | -19.75 | 105.25 | 34.57 | 237.67 | 0.6343 | -802.0 | -635.0 | |
| 0.00 | 2.98 | 0.00 | 1.91 | -20.32 | 105.27 | 34.60 | 236.89 | 0.6381 | -567.0 | -500.1 | |
| 0.00 | 1.02 | 0.00 | 0.67 | -22.60 | 105.32 | 34.64 | 233.78 | 0.6529 | -410.0 | -284.3 | |
| 0.00 | 0.77 | 0.00 | 0.49 | -20.57 | 104.69 | 34.01 | 236.14 | 0.6330 | -544.0 | -474.4 | |
| 0.00 | 1.28 | 0.00 | 0.82 | -21.68 | 104.79 | 34.11 | 234.67 | 0.6412 | -552.0 | -468.2 | |
| 0.00 | 1.53 | 0.00 | 1.00 | -23.31 | 105.17 | 34.50 | 232.73 | 0.6560 | 505.0 | 366.2 | |
| 0.00 | 1.96 | 0.00 | 1.26 | -21.96 | 104.40 | 33.73 | 234.00 | 0.6388 | -613.0 | -460.5 | |
| 0.00 | 1.36 | 0.00 | 0.85 | -19.62 | 103.63 | 32.95 | 236.75 | 0.6149 | -698.0 | -561.4 | |
| 0.00 | 1.62 | 0.00 | 1.04 | -22.06 | 104.12 | 33.45 | 233.67 | 0.6364 | -667.0 | -564.7 | |
| 0.00 | 1.36 | 0.00 | 0.87 | -22.19 | 104.01 | 33.33 | 233.41 | 0.6360 | -696.0 | -501.8 | |
| 0.00 | 2.98 | 0.00 | 1.87 | -19.81 | 103.37 | 32.70 | 236.29 | 0.6132 | -640.0 | -550.5 | |
| 0.00 | 1.36 | 0.00 | 0.87 | -22.38 | 103.98 | 33.30 | 233.13 | 0.6370 | -519.0 | -416.6 | |
| 0.00 | 0.85 | 0.00 | 0.55 | -23.15 | 104.04 | 33.36 | 232.13 | 0.6429 | -581.0 | -505.2 | |
| 0.00 | 2.56 | 0.00 | 1.64 | -22.99 | 103.84 | 33.17 | 232.20 | 0.6397 | -526.0 | -432.7 | |
| 0.00 | 2.39 | 0.00 | 1.52 | -22.38 | 103.64 | 32.96 | 232.88 | 0.6333 | -750.0 | -620.7 | |
| 0.00 | 1.28 | 0.00 | 0.80 | -20.25 | 103.10 | 32.43 | 235.46 | 0.6130 | -693.0 | -562.7 | |
| 0.00 | 1.79 | 0.00 | 1.11 | -19.72 | 102.87 | 32.19 | 236.06 | 0.6067 | -842.0 | -682.1 | |
| 0.00 | 1.88 | 0.00 | 1.20 | -22.79 | 103.63 | 32.96 | 232.31 | 0.6361 | -728.0 | -552.4 | |
| 0.00 | 1.45 | 0.00 | 0.91 | -20.44 | 103.00 | 32.32 | 235.11 | 0.6130 | -655.0 | -474.9 | |
| 0.00 | 2.22 | 0.00 | 1.38 | -19.97 | 102.77 | 32.10 | 235.63 | 0.6073 | -638.0 | -539.2 | |
| 0.00 | 0.60 | 0.00 | 0.37 | -20.76 | 102.85 | 32.17 | 234.55 | 0.6135 | -542.0 | -483.6 | |
| 0.00 | 1.19 | 0.00 | 0.76 | -22.67 | 103.29 | 32.62 | 232.23 | 0.6316 | -692.0 | -567.0 | |
| 1.36 | 1.96 | 0.88 | 1.27 | -24.12 | 103.62 | 32.95 | 230.54 | 0.6453 | -342.0 | -451.0 | |
| 0.00 | 1.28 | 0.00 | 0.81 | -22.38 | 103.14 | 32.47 | 232.51 | 0.6279 | -858.0 | -724.2 | |
| 0.00 | 1.45 | 0.00 | 0.92 | -22.47 | 102.86 | 32.19 | 232.16 | 0.6256 | -755.0 | -591.1 | |
| 0.00 | 0.68 | 0.00 | 0.43 | -22.63 | 102.91 | 32.23 | 231.98 | 0.6272 | -171.0 | -277.4 | |
| 1.28 | 2.56 | 0.79 | 1.58 | -19.90 | 102.09 | 31.42 | 235.21 | 0.5991 | -694.9 | -624.5 | |
| 0.00 | 0.68 | 0.00 | 0.43 | -22.70 | 102.73 | 32.06 | 231.76 | 0.6258 | -450.0 | -413.1 | |
| 1.53 | 1.88 | 0.97 | 1.18 | -22.25 | 102.54 | 31.87 | 232.22 | 0.6205 | -724.4 | -646.8 | |
| 1.28 | 2.05 | 0.80 | 1.28 | -21.52 | 102.21 | 31.53 | 232.98 | 0.6116 | -559.6 | -510.1 | |
| 9.29 | 39.31 | 5.73 | 24.25 | -20.28 | 101.81 | 31.13 | 234.44 | 0.5984 | -1010.1 | -596.5 | |
| 1.45 | 7.42 | 0.90 | 4.62 | -21.33 | 102.05 | 31.38 | 233.13 | 0.6085 | -811.1 | -610.9 | |
| 0.00 | 1.96 | 0.00 | 1.20 | -19.78 | 101.70 | 31.02 | 235.09 | 0.5937 | -632.0 | -436.1 | |
| 6.48 | -50.00 | 4.01 | -50.00 | -20.66 | 101.78 | 31.11 | 233.87 | 0.6008 | -930.7 | 999999 | |
| 1.79 | 3.16 | 1.10 | 1.93 | -20.06 | 101.28 | 30.61 | 234.34 | 0.5909 | -888.4 | -765.2 | |
| 0.00 | 1.45 | 0.00 | 0.92 | -23.63 | 102.00 | 31.32 | 229.91 | 0.6248 | -722.0 | -593.0 | |
| 2.13 | 3.16 | 1.30 | 1.92 | -20.31 | 100.61 | 29.93 | 233.42 | 0.5849 | -793.4 | -695.6 | |
| 0.00 | 1.02 | 0.00 | 0.62 | -19.43 | 99.85 | 29.17 | 234.10 | 0.5697 | -646.0 | -601.6 | |
| 0.00 | 0.77 | 0.00 | 0.46 | -21.93 | 98.13 | 27.46 | 228.87 | 0.5700 | -624.0 | -480.1 | |
| 0.00 | 0.94 | 0.00 | 0.55 | -18.77 | 96.55 | 25.88 | 232.08 | 0.5259 | -288.0 | -245.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
