SDO HMI 2011-12-08 05:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.53 | 23.53 | 4.70 | 12.97 | -25.48 | 75.45 | 4.77 | 189.90 | 0.4399 | -313.7 | -198.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-08 05:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

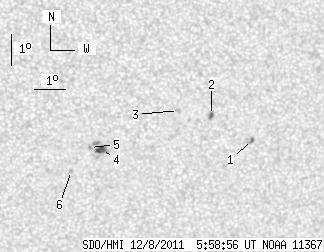

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.19 | 3.84 | 0.66 | 2.13 | -25.40 | 79.09 | 8.42 | 197.13 | 0.4508 | 831.1 | 721.7 | |
| 1.71 | 2.22 | 0.94 | 1.22 | -24.62 | 77.70 | 7.02 | 194.93 | 0.4330 | 924.7 | 854.8 | |
| 0.00 | 2.30 | 0.00 | 1.26 | -24.45 | 76.61 | 5.93 | 192.80 | 0.4264 | 960.0 | 679.3 | |
| 5.63 | 12.53 | 3.10 | 6.90 | -25.73 | 74.14 | 3.46 | 187.14 | 0.4394 | -1026.2 | -741.3 | |
| 0.00 | 1.28 | 0.00 | 0.70 | -25.66 | 73.74 | 3.07 | 186.35 | 0.4377 | -834.0 | -753.5 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -26.42 | 73.17 | 2.49 | 185.00 | 0.4486 | -778.0 | -586.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
