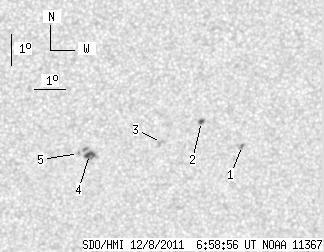

SDO HMI 2011-12-08 06:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.08 | 20.54 | 3.90 | 11.34 | -25.46 | 75.62 | 5.49 | 191.33 | 0.4414 | -74.5 | -110.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-08 06:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.60 | 3.07 | 0.33 | 1.70 | -25.41 | 79.11 | 8.98 | 198.20 | 0.4535 | 751.1 | 729.1 | |
| 2.13 | 2.64 | 1.17 | 1.45 | -24.63 | 77.71 | 7.58 | 196.05 | 0.4354 | 849.2 | 778.5 | |
| 0.00 | 2.98 | 0.00 | 1.65 | -25.31 | 76.44 | 6.30 | 193.07 | 0.4407 | 841.0 | 629.2 | |
| 4.35 | 10.32 | 2.40 | 5.69 | -25.70 | 74.09 | 3.96 | 188.16 | 0.4400 | -1039.4 | -747.2 | |
| 0.00 | 1.53 | 0.00 | 0.85 | -25.67 | 73.72 | 3.59 | 187.43 | 0.4387 | -853.0 | -735.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
