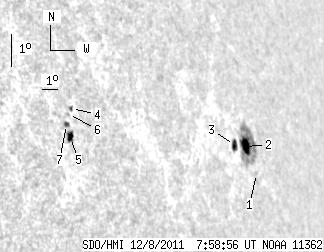

SDO HMI 2011-12-08 07:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.04 | 66.85 | 23.18 | 84.54 | 7.40 | 136.12 | 66.53 | 278.09 | 0.9185 | -166.7 | 25.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-08 07:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.11 | 0.00 | 1.52 | 6.54 | 138.29 | 68.71 | 277.01 | 0.9342 | 225.0 | 172.6 | |
| 7.16 | 47.92 | 9.57 | 64.53 | 7.34 | 137.64 | 68.06 | 277.91 | 0.9304 | -531.9 | 12.2 | |
| 4.95 | 5.88 | 6.38 | 7.59 | 7.37 | 136.78 | 67.19 | 277.99 | 0.9248 | -492.5 | -351.8 | |
| 1.45 | 1.71 | 1.33 | 1.57 | 8.47 | 126.57 | 56.99 | 280.07 | 0.8445 | 335.8 | 346.3 | |
| 4.43 | 6.14 | 4.04 | 5.60 | 7.60 | 126.33 | 56.74 | 279.07 | 0.8415 | 522.8 | 186.0 | |
| 0.00 | 1.19 | 0.00 | 1.09 | 8.29 | 126.37 | 56.78 | 279.88 | 0.8425 | 465.0 | 349.3 | |
| 2.05 | 2.90 | 1.86 | 2.64 | 7.99 | 126.19 | 56.60 | 279.55 | 0.8406 | 422.9 | 390.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
