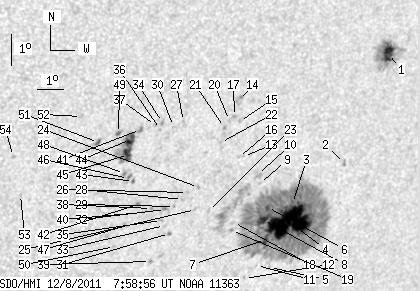

SDO HMI 2011-12-08 07:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 119.62 | 700.44 | 81.31 | 477.56 | -22.16 | 108.03 | 38.44 | 236.73 | 0.6906 | 346.3 | 279.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-08 07:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.26 | 53.89 | 7.82 | 37.42 | -17.52 | 111.19 | 41.61 | 244.57 | 0.7035 | 1013.5 | 396.3 | |
| 0.00 | 1.96 | 0.00 | 1.37 | -20.97 | 110.42 | 40.83 | 239.63 | 0.7100 | -611.0 | -510.0 | |
| 2.13 | 535.56 | 1.47 | 369.24 | -22.24 | 108.68 | 39.09 | 237.05 | 0.6980 | 1174.2 | 403.6 | |
| 70.26 | -3.00 | 48.70 | -3.00 | -22.85 | 108.76 | 39.18 | 236.30 | 0.7021 | 1145.9 | 999999 | |
| 0.00 | 1.45 | 0.00 | 1.01 | -24.30 | 108.45 | 38.86 | 234.27 | 0.7068 | 325.0 | 187.1 | |
| 2.81 | -3.00 | 1.92 | -3.00 | -22.37 | 107.70 | 38.11 | 236.31 | 0.6883 | 1133.8 | 999999 | |
| 4.86 | -3.00 | 3.35 | -3.00 | -23.39 | 107.96 | 38.37 | 235.13 | 0.6968 | 769.2 | 999999 | |
| 6.22 | -3.00 | 4.25 | -3.00 | -22.78 | 107.67 | 38.08 | 235.75 | 0.6903 | 1128.6 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.52 | -21.60 | 107.13 | 37.55 | 236.99 | 0.6780 | 766.0 | 602.4 | |
| 0.00 | 5.80 | 0.00 | 3.88 | -21.31 | 106.97 | 37.38 | 237.28 | 0.6746 | -316.0 | -104.5 | |
| 0.00 | 0.68 | 0.00 | 0.47 | -24.23 | 107.88 | 38.30 | 234.01 | 0.7008 | 403.0 | 357.0 | |
| 0.00 | 1.11 | 0.00 | 0.77 | -24.66 | 107.54 | 37.95 | 233.27 | 0.6997 | 654.0 | 525.2 | |
| 0.00 | 1.02 | 0.00 | 0.68 | -20.74 | 106.24 | 36.66 | 237.62 | 0.6635 | -495.0 | -365.0 | |
| 0.00 | 4.43 | 0.00 | 2.87 | -18.98 | 105.62 | 36.03 | 239.69 | 0.6466 | -533.0 | -636.9 | |
| 0.00 | 1.11 | 0.00 | 0.72 | -19.64 | 105.78 | 36.20 | 238.86 | 0.6522 | -592.0 | -464.6 | |
| 0.00 | 0.68 | 0.00 | 0.45 | -20.78 | 106.05 | 36.47 | 237.46 | 0.6616 | -552.0 | -390.2 | |
| 0.00 | 1.45 | 0.00 | 0.94 | -19.48 | 105.55 | 35.96 | 238.94 | 0.6486 | -773.0 | -647.5 | |
| 0.00 | 1.28 | 0.00 | 0.86 | -22.85 | 106.48 | 36.89 | 234.94 | 0.6781 | 346.0 | 363.6 | |
| 0.00 | 1.79 | 0.00 | 1.21 | -23.10 | 106.48 | 36.89 | 234.61 | 0.6797 | 551.0 | 430.6 | |
| 0.00 | 1.02 | 0.00 | 0.66 | -19.61 | 105.39 | 35.80 | 238.67 | 0.6475 | -762.0 | -562.4 | |
| 0.00 | 1.62 | 0.00 | 1.05 | -19.83 | 105.25 | 35.67 | 238.27 | 0.6472 | -777.0 | -630.6 | |
| 0.00 | 0.85 | 0.00 | 0.55 | -20.30 | 105.22 | 35.63 | 237.59 | 0.6495 | -584.0 | -556.7 | |
| 0.00 | 1.88 | 0.00 | 1.24 | -22.46 | 105.36 | 35.78 | 234.74 | 0.6640 | -316.0 | -272.6 | |
| 0.00 | 1.11 | 0.00 | 0.72 | -21.73 | 104.76 | 35.17 | 235.33 | 0.6529 | -648.0 | -503.8 | |
| 0.00 | 0.77 | 0.00 | 0.50 | -22.43 | 104.84 | 35.25 | 234.44 | 0.6582 | -456.0 | -377.1 | |
| 0.00 | 0.94 | 0.00 | 0.61 | -21.88 | 104.37 | 34.79 | 234.86 | 0.6497 | -505.0 | -332.6 | |
| 0.00 | 0.60 | 0.00 | 0.38 | -19.64 | 103.63 | 34.05 | 237.49 | 0.6276 | -711.0 | -563.0 | |
| 0.00 | 1.28 | 0.00 | 0.83 | -22.11 | 104.24 | 34.65 | 234.47 | 0.6497 | -670.0 | -490.1 | |
| 0.00 | 1.19 | 0.00 | 0.77 | -22.33 | 103.99 | 34.41 | 233.99 | 0.6485 | -557.0 | -404.9 | |
| 0.00 | 1.19 | 0.00 | 0.76 | -19.80 | 103.29 | 33.71 | 237.04 | 0.6246 | -435.0 | -398.4 | |
| 1.19 | 1.53 | 0.78 | 1.00 | -23.20 | 104.05 | 34.46 | 232.87 | 0.6547 | -476.2 | -415.5 | |
| 0.00 | 2.64 | 0.00 | 1.71 | -22.43 | 103.67 | 34.09 | 233.64 | 0.6456 | -711.0 | -597.9 | |
| 0.00 | 1.36 | 0.00 | 0.89 | -22.94 | 103.78 | 34.19 | 233.02 | 0.6502 | -413.0 | -398.4 | |
| 0.00 | 1.96 | 0.00 | 1.23 | -19.67 | 102.85 | 33.26 | 236.91 | 0.6187 | -787.0 | -666.8 | |
| 0.00 | 1.96 | 0.00 | 1.27 | -22.78 | 103.62 | 34.03 | 233.12 | 0.6474 | -708.0 | -528.7 | |
| 0.00 | 1.11 | 0.00 | 0.70 | -19.89 | 102.82 | 33.24 | 236.58 | 0.6198 | -879.0 | -661.2 | |
| 0.00 | 1.36 | 0.00 | 0.86 | -19.76 | 102.61 | 33.02 | 236.61 | 0.6165 | -743.0 | -616.2 | |
| 0.00 | 1.36 | 0.00 | 0.88 | -22.39 | 103.12 | 33.54 | 233.29 | 0.6395 | -815.0 | -653.6 | |
| 0.00 | 1.36 | 0.00 | 0.89 | -24.10 | 103.58 | 33.99 | 231.34 | 0.6559 | -561.0 | -429.4 | |
| 0.00 | 0.26 | 0.00 | 0.16 | -22.52 | 102.81 | 33.23 | 232.89 | 0.6370 | -685.0 | -595.0 | |
| 0.00 | 3.75 | 0.00 | 2.34 | -19.89 | 102.07 | 32.49 | 236.05 | 0.6112 | -770.0 | -639.2 | |
| 0.00 | 1.53 | 0.00 | 0.98 | -22.27 | 102.55 | 32.97 | 233.05 | 0.6325 | -854.0 | -708.4 | |
| 0.68 | 1.88 | 0.43 | 1.19 | -21.53 | 102.21 | 32.62 | 233.81 | 0.6237 | -537.8 | -452.1 | |
| 8.53 | 35.30 | 5.32 | 22.03 | -20.20 | 101.77 | 32.19 | 235.37 | 0.6098 | -969.7 | -597.4 | |
| 7.67 | -44.00 | 4.80 | -44.00 | -20.68 | 101.81 | 32.23 | 234.72 | 0.6134 | -806.7 | 999999 | |
| 0.00 | 2.90 | 0.00 | 1.83 | -21.44 | 102.00 | 32.41 | 233.78 | 0.6207 | -759.0 | -666.2 | |
| 0.00 | 1.36 | 0.00 | 0.87 | -22.94 | 102.31 | 32.73 | 231.96 | 0.6346 | -535.0 | -516.2 | |
| 0.00 | 1.96 | 0.00 | 1.23 | -21.28 | 101.81 | 32.22 | 233.86 | 0.6175 | -790.0 | -588.0 | |
| 1.96 | 2.73 | 1.21 | 1.69 | -20.01 | 101.29 | 31.70 | 235.28 | 0.6030 | -867.6 | -809.4 | |
| 0.00 | 1.11 | 0.00 | 0.71 | -23.61 | 102.04 | 32.46 | 230.84 | 0.6365 | -651.0 | -569.5 | |
| 2.05 | 3.50 | 1.26 | 2.15 | -20.30 | 100.61 | 31.03 | 234.35 | 0.5972 | -763.8 | -623.1 | |
| 0.00 | 2.05 | 0.00 | 1.24 | -19.48 | 99.81 | 30.23 | 234.92 | 0.5822 | -681.0 | -525.7 | |
| 0.00 | 0.51 | 0.00 | 0.31 | -21.94 | 98.13 | 28.54 | 229.87 | 0.5819 | -438.0 | -456.3 | |
| 0.00 | 1.53 | 0.00 | 0.92 | -20.74 | 97.62 | 28.03 | 231.16 | 0.5666 | -752.0 | -569.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
