SDO HMI 2011-12-08 07:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.72 | 78.93 | 28.17 | 107.22 | 17.08 | 137.02 | 67.44 | 288.50 | 0.9300 | 191.7 | -117.5 | |
|
previous
or next observation for the same group /

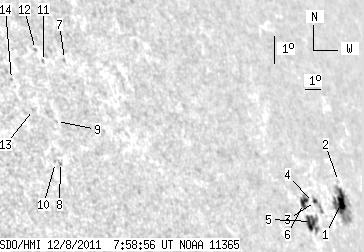

back to the solar disc SDO HMI 2011-12-08 07:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.63 | 38.28 | 8.41 | 57.23 | 16.96 | 139.33 | 69.75 | 288.01 | 0.9451 | -512.6 | -233.1 | |
| 0.00 | 0.85 | 0.00 | 1.30 | 17.61 | 139.62 | 70.03 | 288.66 | 0.9470 | -224.0 | -203.6 | |
| 0.77 | 7.59 | 1.04 | 10.33 | 16.98 | 137.12 | 67.53 | 288.29 | 0.9324 | 135.4 | -167.1 | |
| 0.51 | -3.00 | 0.69 | -3.00 | 16.95 | 136.93 | 67.35 | 288.28 | 0.9313 | -57.5 | 999999 | |
| 8.95 | 16.03 | 11.70 | 21.03 | 16.36 | 136.35 | 66.77 | 287.72 | 0.9273 | 545.6 | 175.1 | |
| 4.86 | 7.50 | 6.33 | 9.79 | 16.92 | 136.11 | 66.53 | 288.35 | 0.9262 | 368.5 | 8.1 | |
| 0.00 | 1.19 | 0.00 | 1.08 | 21.41 | 123.62 | 54.03 | 295.86 | 0.8395 | -525.0 | -391.6 | |
| 0.00 | 1.53 | 0.00 | 1.31 | 18.17 | 121.84 | 52.25 | 292.55 | 0.8157 | 542.0 | 463.3 | |
| 0.00 | 0.85 | 0.00 | 0.74 | 19.46 | 122.21 | 52.62 | 293.97 | 0.8222 | 405.0 | 332.5 | |
| 0.00 | 0.51 | 0.00 | 0.43 | 18.17 | 121.58 | 52.00 | 292.62 | 0.8133 | 493.0 | 411.3 | |
| 0.00 | 1.02 | 0.00 | 0.90 | 21.35 | 122.46 | 52.87 | 296.12 | 0.8292 | 466.0 | 410.6 | |
| 0.00 | 1.45 | 0.00 | 1.27 | 21.73 | 122.24 | 52.65 | 296.63 | 0.8283 | 407.0 | 294.5 | |
| 0.00 | 1.36 | 0.00 | 1.16 | 19.83 | 121.20 | 51.61 | 294.71 | 0.8139 | 591.0 | 450.2 | |
| 0.00 | 0.77 | 0.00 | 0.65 | 20.78 | 120.52 | 50.94 | 296.05 | 0.8103 | 463.0 | 393.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
