SDO HMI 2011-12-08 08:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 44.85 | 169.50 | 28.41 | 107.14 | 18.39 | 103.26 | 34.22 | 300.61 | 0.6224 | -268.0 | -243.1 | |
|
previous
or next observation for the same group /

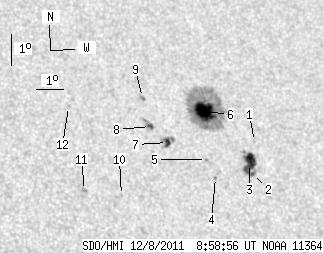

back to the solar disc SDO HMI 2011-12-08 08:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.85 | 0.00 | 0.55 | 17.81 | 105.09 | 36.05 | 298.65 | 0.6408 | -188.0 | -85.4 | |
| 1.53 | 22.17 | 0.98 | 14.15 | 16.79 | 104.78 | 35.74 | 297.33 | 0.6318 | 710.6 | 607.7 | |
| 14.75 | -2.00 | 9.42 | -2.00 | 17.13 | 104.74 | 35.70 | 297.85 | 0.6331 | 911.9 | 999999 | |
| 0.00 | 1.02 | 0.00 | 0.64 | 16.70 | 103.37 | 34.33 | 298.02 | 0.6141 | 614.0 | 383.0 | |
| 0.00 | 0.94 | 0.00 | 0.59 | 17.25 | 103.15 | 34.10 | 298.99 | 0.6145 | -762.0 | -579.3 | |
| 22.94 | 121.50 | 14.54 | 77.09 | 18.74 | 103.40 | 34.36 | 301.03 | 0.6260 | -1144.5 | -310.9 | |
| 3.50 | 10.32 | 2.16 | 6.38 | 17.78 | 101.81 | 32.76 | 300.66 | 0.6014 | -924.7 | -556.6 | |
| 2.13 | 5.46 | 1.31 | 3.36 | 18.28 | 101.28 | 32.24 | 301.77 | 0.5981 | -859.3 | -175.9 | |
| 0.00 | 2.30 | 0.00 | 1.43 | 19.18 | 101.18 | 32.14 | 303.19 | 0.6027 | -872.0 | -733.0 | |
| 0.00 | 0.77 | 0.00 | 0.46 | 16.14 | 99.82 | 30.78 | 299.50 | 0.5670 | 649.0 | 585.3 | |
| 0.00 | 2.64 | 0.00 | 1.57 | 16.29 | 98.53 | 29.49 | 300.72 | 0.5517 | 908.0 | 712.7 | |
| 0.00 | 1.53 | 0.00 | 0.92 | 18.90 | 98.43 | 29.39 | 304.91 | 0.5684 | 640.0 | 578.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
