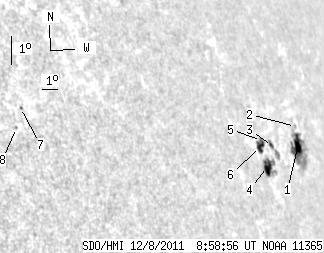

SDO HMI 2011-12-08 08:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.14 | 78.10 | 29.16 | 112.16 | 16.83 | 137.81 | 68.77 | 288.01 | 0.9387 | 190.5 | -118.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-08 08:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.77 | 40.67 | 7.32 | 62.58 | 16.93 | 139.30 | 70.26 | 287.92 | 0.9478 | -597.1 | -187.7 | |
| 0.00 | 0.94 | 0.00 | 1.47 | 17.58 | 139.69 | 70.65 | 288.56 | 0.9502 | -134.0 | -75.6 | |
| 0.51 | 7.25 | 0.71 | 10.09 | 16.95 | 137.12 | 68.08 | 288.20 | 0.9357 | 150.7 | -210.4 | |
| 9.04 | 17.65 | 12.05 | 23.68 | 16.33 | 136.26 | 67.22 | 287.64 | 0.9300 | 562.0 | 90.2 | |
| 1.11 | 9.29 | 1.49 | 12.38 | 17.14 | 136.36 | 67.32 | 288.49 | 0.9313 | -199.7 | 195.2 | |
| 5.71 | -5.00 | 7.59 | -5.00 | 16.95 | 136.14 | 67.10 | 288.31 | 0.9298 | 386.6 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.95 | 18.14 | 121.79 | 52.75 | 292.38 | 0.8203 | 646.0 | 569.6 | |
| 0.00 | 1.19 | 0.00 | 1.01 | 17.52 | 121.32 | 52.28 | 291.77 | 0.8145 | 471.0 | 379.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
