SDO HMI 2011-12-08 08:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.94 | 24.91 | 2.73 | 13.79 | -25.88 | 74.91 | 5.87 | 191.94 | 0.4489 | -178.1 | -238.9 | |
|
previous
or next observation for the same group /

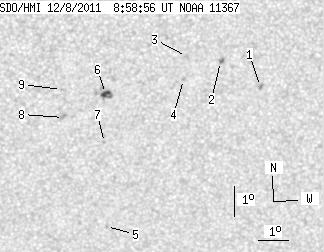

back to the solar disc SDO HMI 2011-12-08 08:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.47 | 0.00 | 1.38 | -25.45 | 79.12 | 10.08 | 200.19 | 0.4596 | 1008.0 | 806.5 | |
| 1.19 | 1.71 | 0.66 | 0.94 | -24.64 | 77.73 | 8.69 | 198.25 | 0.4406 | 903.2 | 777.2 | |
| 0.00 | 1.71 | 0.00 | 0.94 | -24.47 | 76.61 | 7.57 | 196.14 | 0.4329 | 770.0 | 624.2 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -25.22 | 76.55 | 7.51 | 195.52 | 0.4439 | 796.0 | 567.7 | |
| 0.00 | 1.45 | 0.00 | 0.83 | -30.13 | 74.26 | 5.22 | 188.90 | 0.5100 | -599.0 | -494.8 | |
| 3.75 | 11.77 | 2.07 | 6.49 | -25.68 | 74.01 | 4.97 | 190.22 | 0.4420 | -998.1 | -685.0 | |
| 0.00 | 0.94 | 0.00 | 0.52 | -27.30 | 74.05 | 5.01 | 189.60 | 0.4669 | -703.0 | -602.5 | |
| 0.00 | 2.56 | 0.00 | 1.42 | -26.47 | 72.66 | 3.61 | 187.22 | 0.4510 | -820.0 | -687.2 | |
| 0.00 | 0.94 | 0.00 | 0.52 | -25.55 | 72.56 | 3.52 | 187.32 | 0.4365 | -715.0 | -492.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
