SDO HMI 2011-12-08 08:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.61 | 32.23 | 8.79 | 18.07 | 7.94 | 42.29 | -26.75 | 72.72 | 0.4687 | 311.7 | -1.9 | |
|
previous
or next observation for the same group /

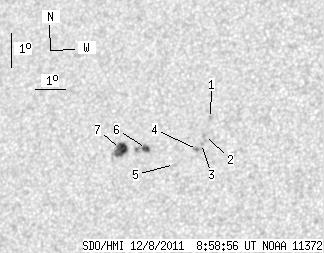

back to the solar disc SDO HMI 2011-12-08 08:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.28 | 0.00 | 0.71 | 8.81 | 44.33 | -24.71 | 69.63 | 0.4425 | -894.0 | -754.0 | |
| 0.00 | 1.79 | 0.00 | 0.99 | 8.30 | 44.17 | -24.87 | 70.84 | 0.4424 | -873.0 | -665.2 | |
| 0.00 | 1.02 | 0.00 | 0.56 | 8.06 | 44.09 | -24.95 | 71.41 | 0.4425 | -698.0 | -517.9 | |
| 0.00 | 3.24 | 0.00 | 1.79 | 7.88 | 43.97 | -25.07 | 71.88 | 0.4435 | -878.0 | -684.7 | |
| 0.00 | 1.11 | 0.00 | 0.62 | 7.44 | 43.24 | -25.80 | 73.28 | 0.4526 | -614.0 | -408.7 | |
| 3.84 | 8.19 | 2.15 | 4.59 | 7.91 | 42.27 | -26.77 | 72.82 | 0.4688 | 990.6 | 678.5 | |
| 11.77 | 15.60 | 6.64 | 8.81 | 7.89 | 41.40 | -27.64 | 73.35 | 0.4816 | 922.5 | 593.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
