SDO HMI 2011-12-08 09:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.78 | 155.33 | 52.37 | 305.98 | -17.06 | 353.71 | -74.79 | 107.63 | 0.9691 | 200.5 | 62.9 | |
|
previous
or next observation for the same group /

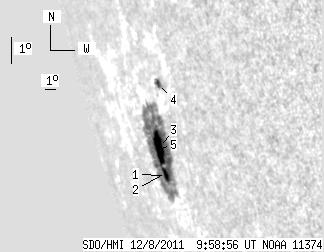

back to the solar disc SDO HMI 2011-12-08 09:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.58 | 148.68 | 7.14 | 294.42 | -17.80 | 353.58 | -74.92 | 108.39 | 0.9699 | 360.4 | 67.1 | |
| 1.71 | -1.00 | 3.46 | -1.00 | -17.74 | 353.41 | -75.08 | 108.32 | 0.9706 | -230.8 | 999999 | |
| 12.96 | -1.00 | 25.41 | -1.00 | -16.94 | 353.76 | -74.74 | 107.51 | 0.9689 | 540.4 | 999999 | |
| 3.07 | 6.65 | 5.36 | 11.56 | -14.96 | 355.62 | -72.88 | 105.62 | 0.9600 | -271.1 | -104.8 | |
| 5.46 | -1.00 | 11.00 | -1.00 | -17.00 | 353.44 | -75.05 | 107.55 | 0.9702 | -323.1 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
