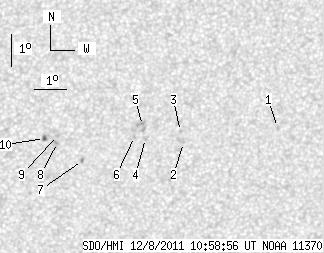

SDO HMI 2011-12-08 10:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.88 | 17.91 | 0.99 | 9.48 | -17.89 | 78.46 | 10.51 | 209.29 | 0.3552 | 93.4 | 279.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-08 10:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.28 | 0.00 | 0.69 | -17.67 | 83.24 | 15.29 | 219.64 | 0.3955 | 672.0 | 577.7 | |
| 0.00 | 0.85 | 0.00 | 0.45 | -18.13 | 80.27 | 12.32 | 213.11 | 0.3728 | 716.0 | 619.2 | |
| 0.00 | 1.28 | 0.00 | 0.68 | -17.79 | 80.15 | 12.20 | 213.40 | 0.3672 | 658.0 | 487.3 | |
| 0.00 | 1.11 | 0.00 | 0.59 | -18.01 | 79.06 | 11.11 | 210.68 | 0.3607 | 671.0 | 512.0 | |
| 0.00 | 5.97 | 0.00 | 3.16 | -17.61 | 78.94 | 10.99 | 211.02 | 0.3541 | 723.0 | 779.4 | |
| 0.00 | 0.94 | 0.00 | 0.50 | -17.95 | 78.70 | 10.76 | 209.97 | 0.3569 | 837.0 | 647.1 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -18.69 | 77.11 | 9.16 | 205.21 | 0.3555 | -839.0 | -657.1 | |
| 0.00 | 1.28 | 0.00 | 0.67 | -18.13 | 76.29 | 8.34 | 203.91 | 0.3416 | -848.0 | -791.3 | |
| 0.00 | 1.62 | 0.00 | 0.85 | -17.92 | 76.28 | 8.33 | 204.16 | 0.3383 | -822.0 | -654.9 | |
| 1.88 | 2.22 | 0.99 | 1.17 | -18.01 | 75.88 | 7.93 | 203.01 | 0.3370 | -843.0 | -858.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
