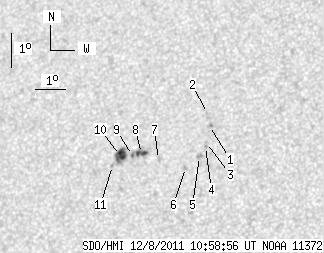

SDO HMI 2011-12-08 10:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.60 | 35.80 | 8.70 | 19.88 | 7.97 | 42.30 | -25.65 | 72.00 | 0.4525 | 276.9 | 14.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-08 10:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.96 | 0.00 | 1.07 | 8.80 | 44.30 | -23.65 | 68.86 | 0.4269 | -929.0 | -786.9 | |
| 0.00 | 1.02 | 0.00 | 0.56 | 9.16 | 44.21 | -23.74 | 68.14 | 0.4301 | -703.0 | -529.1 | |
| 0.00 | 0.26 | 0.00 | 0.14 | 8.29 | 44.23 | -23.72 | 70.04 | 0.4253 | -703.0 | -768.3 | |
| 0.00 | 1.02 | 0.00 | 0.56 | 8.17 | 44.21 | -23.74 | 70.33 | 0.4251 | -880.0 | -725.7 | |
| 0.00 | 3.07 | 0.00 | 1.68 | 7.88 | 44.03 | -23.92 | 71.12 | 0.4263 | -930.0 | -679.0 | |
| 0.00 | 1.96 | 0.00 | 1.08 | 7.55 | 43.59 | -24.36 | 72.15 | 0.4314 | -670.0 | -625.2 | |
| 0.00 | 1.62 | 0.00 | 0.90 | 7.79 | 42.69 | -25.26 | 72.19 | 0.4459 | 351.0 | 375.4 | |
| 4.86 | 9.63 | 2.70 | 5.36 | 7.97 | 42.12 | -25.83 | 72.16 | 0.4553 | 939.0 | 664.1 | |
| 0.68 | -8.00 | 0.38 | -8.00 | 7.91 | 41.82 | -26.13 | 72.46 | 0.4594 | 854.4 | 999999 | |
| 10.06 | 13.64 | 5.62 | 7.62 | 7.91 | 41.42 | -26.53 | 72.69 | 0.4653 | 901.4 | 660.6 | |
| 0.00 | 1.62 | 0.00 | 0.91 | 7.61 | 41.18 | -26.77 | 73.45 | 0.4678 | 584.0 | 509.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
