SDO HMI 2011-12-08 10:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.47 | 164.77 | 46.25 | 314.27 | -17.01 | 353.73 | -74.22 | 107.63 | 0.9667 | 189.1 | 69.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-08 10:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

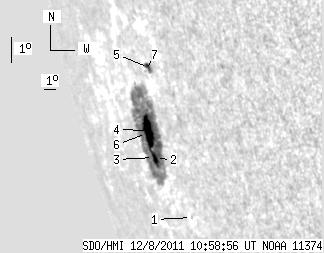

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.60 | 0.00 | 1.05 | -19.62 | 355.43 | -72.52 | 110.49 | 0.9604 | -32.0 | -20.4 | |
| 2.05 | 157.87 | 3.95 | 302.48 | -17.78 | 353.56 | -74.39 | 108.41 | 0.9678 | 287.4 | 69.8 | |
| 1.45 | -2.00 | 2.84 | -2.00 | -17.74 | 353.36 | -74.59 | 108.36 | 0.9686 | -221.5 | 999999 | |
| 12.36 | -2.00 | 23.45 | -2.00 | -16.91 | 353.84 | -74.11 | 107.53 | 0.9662 | 552.4 | 999999 | |
| 2.98 | 4.60 | 5.05 | 7.80 | -14.96 | 355.60 | -72.35 | 105.66 | 0.9574 | -270.1 | -65.3 | |
| 5.63 | -2.00 | 10.96 | -2.00 | -17.00 | 353.38 | -74.56 | 107.59 | 0.9682 | -295.4 | 999999 | |
| 0.00 | 1.70 | 0.00 | 2.94 | -15.06 | 355.21 | -72.74 | 105.73 | 0.9593 | 299.0 | 207.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
