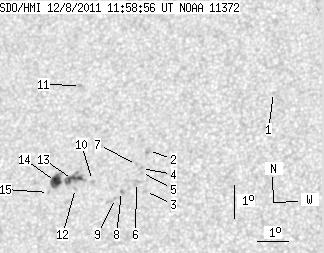

SDO HMI 2011-12-08 11:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.81 | 45.16 | 9.89 | 24.90 | 8.10 | 42.59 | -24.81 | 71.15 | 0.4408 | 203.0 | -72.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-08 11:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.85 | 0.00 | 0.45 | 10.56 | 48.31 | -19.10 | 60.27 | 0.3720 | 621.0 | 486.9 | |
| 0.00 | 2.90 | 0.00 | 1.58 | 8.83 | 44.41 | -23.00 | 68.27 | 0.4174 | -389.0 | -525.8 | |
| 0.00 | 1.45 | 0.00 | 0.79 | 7.60 | 44.38 | -23.02 | 71.10 | 0.4115 | -918.0 | -599.1 | |
| 0.00 | 1.36 | 0.00 | 0.74 | 8.29 | 44.21 | -23.19 | 69.65 | 0.4174 | -713.0 | -625.1 | |
| 0.00 | 1.11 | 0.00 | 0.60 | 8.17 | 44.22 | -23.18 | 69.91 | 0.4167 | -882.0 | -644.8 | |
| 0.00 | 3.58 | 0.00 | 1.95 | 7.87 | 44.08 | -23.33 | 70.70 | 0.4174 | -688.0 | -603.3 | |
| 0.00 | 1.11 | 0.00 | 0.60 | 8.41 | 44.04 | -23.36 | 69.50 | 0.4206 | -719.0 | -549.8 | |
| 0.00 | 1.53 | 0.00 | 0.84 | 7.61 | 43.60 | -23.80 | 71.64 | 0.4232 | -774.0 | -674.6 | |
| 0.00 | 1.02 | 0.00 | 0.56 | 7.40 | 43.42 | -23.98 | 72.24 | 0.4251 | -609.0 | -526.9 | |
| 0.00 | 0.51 | 0.00 | 0.28 | 7.93 | 42.63 | -24.77 | 71.56 | 0.4393 | 732.0 | 564.3 | |
| 0.00 | 1.45 | 0.00 | 0.81 | 10.78 | 42.02 | -25.38 | 66.02 | 0.4629 | -861.0 | -714.5 | |
| 0.00 | 1.53 | 0.00 | 0.85 | 7.70 | 42.09 | -25.31 | 72.42 | 0.4463 | 183.0 | 231.4 | |
| 8.18 | 14.23 | 4.53 | 7.88 | 7.96 | 41.97 | -25.43 | 71.91 | 0.4493 | 908.0 | 721.7 | |
| 9.63 | 11.25 | 5.36 | 6.26 | 7.90 | 41.41 | -25.99 | 72.38 | 0.4573 | 908.5 | 705.3 | |
| 0.00 | 1.28 | 0.00 | 0.71 | 7.58 | 41.20 | -26.20 | 73.19 | 0.4591 | 681.0 | 545.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
