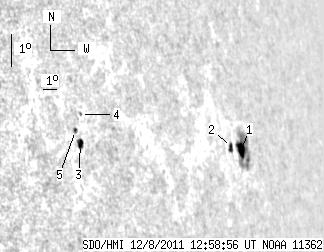

SDO HMI 2011-12-08 12:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.20 | 47.21 | 17.08 | 67.81 | 7.42 | 136.25 | 69.40 | 277.96 | 0.9368 | -162.7 | 56.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-08 12:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.77 | 34.77 | 7.28 | 53.69 | 7.37 | 137.73 | 70.88 | 277.80 | 0.9472 | -443.8 | 56.2 | |
| 3.15 | 3.92 | 4.62 | 5.74 | 7.46 | 136.95 | 70.10 | 277.93 | 0.9428 | -439.1 | -452.0 | |
| 3.92 | 5.45 | 3.85 | 5.36 | 7.54 | 126.29 | 59.44 | 278.75 | 0.8657 | 404.9 | 204.4 | |
| 0.00 | 1.11 | 0.00 | 1.10 | 8.43 | 126.51 | 59.65 | 279.76 | 0.8682 | 312.0 | 264.0 | |
| 1.36 | 1.96 | 1.33 | 1.92 | 7.95 | 126.09 | 59.24 | 279.25 | 0.8643 | 336.6 | 318.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
