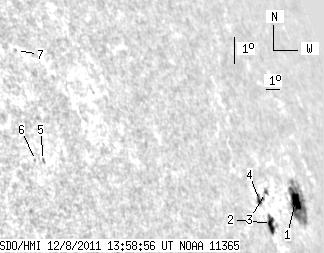

SDO HMI 2011-12-08 13:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.51 | 68.26 | 31.32 | 113.67 | 16.87 | 137.99 | 71.68 | 287.76 | 0.9541 | 20.4 | -30.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-08 13:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.84 | 45.85 | 13.83 | 81.82 | 16.92 | 139.21 | 72.91 | 287.66 | 0.9610 | -564.1 | -87.5 | |
| 8.52 | 11.50 | 12.78 | 17.27 | 16.21 | 136.22 | 69.91 | 287.20 | 0.9456 | 424.2 | 82.1 | |
| 1.19 | 2.56 | 1.83 | 3.92 | 17.16 | 136.47 | 70.16 | 288.19 | 0.9475 | 138.1 | 38.1 | |
| 1.96 | 5.28 | 2.88 | 7.82 | 16.92 | 135.71 | 69.41 | 288.01 | 0.9432 | 531.7 | 382.2 | |
| 0.00 | 1.53 | 0.00 | 1.41 | 18.13 | 121.81 | 55.51 | 291.69 | 0.8451 | 407.0 | 424.5 | |
| 0.00 | 0.77 | 0.00 | 0.70 | 18.13 | 121.37 | 55.07 | 291.79 | 0.8412 | 467.0 | 373.4 | |
| 0.00 | 0.77 | 0.00 | 0.73 | 21.59 | 122.15 | 55.84 | 295.58 | 0.8551 | 423.0 | 372.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
