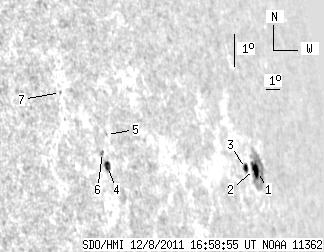

SDO HMI 2011-12-08 16:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.95 | 46.77 | 19.63 | 75.61 | 7.48 | 136.42 | 71.76 | 277.90 | 0.9501 | -47.6 | 66.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-08 16:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.62 | 34.51 | 2.84 | 60.43 | 7.37 | 138.07 | 73.41 | 277.69 | 0.9604 | 293.3 | 59.2 | |
| 4.52 | -1.00 | 7.77 | -1.00 | 7.43 | 137.78 | 73.12 | 277.77 | 0.9590 | -362.7 | 999999 | |
| 3.15 | 4.00 | 5.17 | 6.56 | 7.46 | 136.87 | 72.22 | 277.84 | 0.9544 | -326.9 | -317.1 | |
| 3.66 | 4.77 | 3.85 | 5.02 | 7.50 | 126.26 | 61.61 | 278.53 | 0.8839 | 382.4 | 123.8 | |
| 0.00 | 0.85 | 0.00 | 0.90 | 8.46 | 126.45 | 61.80 | 279.60 | 0.8860 | 320.0 | 257.4 | |
| 0.00 | 1.70 | 0.00 | 1.78 | 7.92 | 126.05 | 61.40 | 279.02 | 0.8825 | 376.0 | 285.9 | |
| 0.00 | 0.94 | 0.00 | 0.92 | 9.71 | 123.98 | 59.33 | 281.28 | 0.8665 | 430.0 | 361.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
