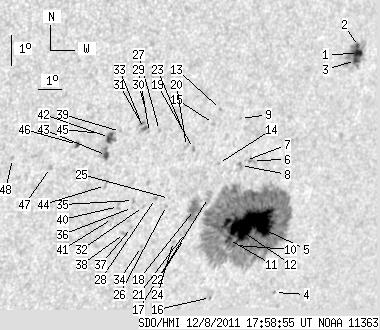

SDO HMI 2011-12-08 17:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 99.76 | 648.45 | 74.28 | 481.19 | -22.37 | 108.03 | 43.93 | 239.32 | 0.7480 | 440.0 | 323.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-08 17:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.77 | 36.12 | 3.65 | 27.57 | -17.48 | 111.33 | 47.23 | 246.81 | 0.7641 | 915.2 | 502.9 | |
| 1.53 | -1.00 | 1.17 | -1.00 | -17.26 | 111.26 | 47.16 | 247.06 | 0.7627 | 785.8 | 999999 | |
| 2.13 | -1.00 | 1.63 | -1.00 | -17.70 | 111.27 | 47.17 | 246.51 | 0.7641 | 924.9 | 999999 | |
| 0.00 | 1.28 | 0.00 | 1.01 | -25.07 | 110.59 | 46.49 | 237.21 | 0.7838 | -628.0 | -462.3 | |
| 74.12 | 508.97 | 55.83 | 381.49 | -22.87 | 108.57 | 44.47 | 238.98 | 0.7556 | 1045.9 | 398.2 | |
| 0.00 | 3.83 | 0.00 | 2.81 | -20.83 | 107.78 | 43.68 | 241.18 | 0.7391 | 308.0 | 196.5 | |
| 0.00 | 0.85 | 0.00 | 0.62 | -20.83 | 107.47 | 43.37 | 241.05 | 0.7359 | -274.0 | -185.4 | |
| 0.00 | 3.32 | 0.00 | 2.42 | -20.98 | 107.31 | 43.21 | 240.77 | 0.7349 | 188.0 | 63.5 | |
| 0.00 | 0.77 | 0.00 | 0.55 | -19.50 | 106.80 | 42.70 | 242.45 | 0.7233 | -500.0 | -421.0 | |
| 0.85 | -5.00 | 0.64 | -5.00 | -23.54 | 108.09 | 43.99 | 237.93 | 0.7538 | 565.2 | 999999 | |
| 2.73 | -5.00 | 2.03 | -5.00 | -23.35 | 107.70 | 43.60 | 237.98 | 0.7490 | 768.8 | 999999 | |
| 3.75 | -5.00 | 2.77 | -5.00 | -22.77 | 107.42 | 43.32 | 238.57 | 0.7437 | 1207.4 | 999999 | |
| 0.00 | 0.85 | 0.00 | 0.60 | -19.22 | 105.86 | 41.76 | 242.40 | 0.7120 | -688.0 | -614.8 | |
| 0.00 | 1.11 | 0.00 | 0.79 | -20.92 | 106.34 | 42.24 | 240.40 | 0.7245 | -311.0 | -282.9 | |
| 0.00 | 1.70 | 0.00 | 1.20 | -19.66 | 105.70 | 41.60 | 241.75 | 0.7122 | -524.0 | -457.3 | |
| 0.00 | 0.94 | 0.00 | 0.71 | -25.23 | 107.70 | 43.60 | 235.69 | 0.7577 | -187.0 | -193.5 | |
| 0.00 | 7.16 | 0.00 | 5.16 | -22.00 | 106.29 | 42.19 | 239.00 | 0.7289 | 441.0 | 441.7 | |
| 0.00 | 23.68 | 0.00 | 16.99 | -22.38 | 105.83 | 41.73 | 238.29 | 0.7259 | 468.0 | 471.3 | |
| 0.00 | 1.87 | 0.00 | 1.31 | -20.45 | 105.12 | 41.02 | 240.43 | 0.7094 | -649.0 | -548.4 | |
| 0.00 | 2.47 | 0.00 | 1.72 | -20.38 | 104.80 | 40.70 | 240.36 | 0.7057 | -627.0 | -527.1 | |
| 0.00 | 1.70 | 0.00 | 1.23 | -23.12 | 105.72 | 41.62 | 237.30 | 0.7283 | 605.0 | 513.2 | |
| 0.00 | 0.85 | 0.00 | 0.61 | -23.31 | 105.75 | 41.65 | 237.07 | 0.7296 | 540.0 | 459.9 | |
| 0.00 | 0.60 | 0.00 | 0.41 | -19.91 | 104.53 | 40.43 | 240.85 | 0.7006 | -714.0 | -558.9 | |
| 0.00 | 1.11 | 0.00 | 0.79 | -23.41 | 105.32 | 41.22 | 236.72 | 0.7256 | 251.0 | 209.2 | |
| 0.00 | 0.60 | 0.00 | 0.42 | -22.03 | 104.64 | 40.55 | 238.13 | 0.7119 | -284.0 | -242.0 | |
| 0.00 | 1.11 | 0.00 | 0.78 | -22.25 | 104.60 | 40.50 | 237.82 | 0.7125 | -379.0 | -322.3 | |
| 0.00 | 1.02 | 0.00 | 0.70 | -19.88 | 103.53 | 39.44 | 240.39 | 0.6895 | -545.0 | -439.9 | |
| 0.00 | 1.11 | 0.00 | 0.77 | -22.03 | 104.06 | 39.96 | 237.82 | 0.7058 | -611.0 | -526.9 | |
| 0.00 | 0.77 | 0.00 | 0.52 | -19.94 | 103.15 | 39.05 | 240.10 | 0.6855 | -491.0 | -467.9 | |
| 0.00 | 1.11 | 0.00 | 0.74 | -19.28 | 102.83 | 38.74 | 240.83 | 0.6788 | -589.0 | -473.4 | |
| 0.00 | 2.39 | 0.00 | 1.61 | -19.81 | 102.91 | 38.81 | 240.14 | 0.6822 | -775.0 | -658.4 | |
| 0.00 | 1.19 | 0.00 | 0.83 | -22.29 | 103.65 | 39.55 | 237.26 | 0.7028 | -440.0 | -439.4 | |
| 0.00 | 2.39 | 0.00 | 1.61 | -19.66 | 102.74 | 38.64 | 240.26 | 0.6796 | -758.0 | -650.5 | |
| 0.00 | 1.02 | 0.00 | 0.72 | -23.57 | 104.02 | 39.92 | 235.82 | 0.7133 | -379.0 | -326.8 | |
| 0.00 | 2.13 | 0.00 | 1.47 | -22.09 | 103.17 | 39.07 | 237.25 | 0.6967 | -646.0 | -549.1 | |
| 0.00 | 1.02 | 0.00 | 0.71 | -22.32 | 103.20 | 39.10 | 236.97 | 0.6983 | -617.0 | -539.9 | |
| 0.00 | 1.19 | 0.00 | 0.83 | -22.96 | 103.38 | 39.28 | 236.25 | 0.7035 | -415.0 | -285.4 | |
| 0.00 | 2.13 | 0.00 | 1.48 | -23.15 | 103.16 | 39.06 | 235.87 | 0.7023 | -456.0 | -409.8 | |
| 0.00 | 0.77 | 0.00 | 0.51 | -19.91 | 101.97 | 37.87 | 239.50 | 0.6723 | -669.0 | -528.3 | |
| 0.00 | 2.56 | 0.00 | 1.75 | -22.28 | 102.62 | 38.52 | 236.68 | 0.6919 | -734.0 | -590.8 | |
| 0.00 | 0.94 | 0.00 | 0.64 | -22.67 | 102.50 | 38.40 | 236.11 | 0.6928 | -755.0 | -671.9 | |
| 5.37 | 7.58 | 3.57 | 5.04 | -20.10 | 101.59 | 37.49 | 239.02 | 0.6690 | -899.9 | -707.3 | |
| 2.98 | 9.12 | 1.99 | 6.07 | -20.66 | 101.63 | 37.53 | 238.27 | 0.6725 | -720.2 | -660.1 | |
| 0.00 | 2.64 | 0.00 | 1.78 | -21.62 | 101.87 | 37.78 | 237.14 | 0.6804 | -709.0 | -560.1 | |
| 0.00 | 0.43 | 0.00 | 0.28 | -19.97 | 101.23 | 37.14 | 238.99 | 0.6644 | -738.0 | -665.0 | |
| 1.53 | 2.81 | 1.00 | 1.84 | -20.32 | 100.39 | 36.29 | 238.01 | 0.6568 | -685.9 | -479.3 | |
| 0.00 | 1.96 | 0.00 | 1.28 | -21.04 | 99.53 | 35.43 | 236.47 | 0.6514 | -622.0 | -455.8 | |
| 0.00 | 1.28 | 0.00 | 0.82 | -20.76 | 97.99 | 33.89 | 235.84 | 0.6325 | -776.0 | -599.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
