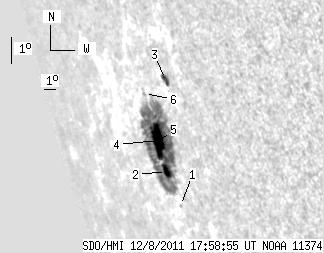

SDO HMI 2011-12-08 17:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33.31 | 190.08 | 51.43 | 296.25 | -17.01 | 353.46 | -70.64 | 107.95 | 0.9498 | 372.0 | 106.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-08 17:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.11 | 0.00 | 1.73 | -18.90 | 353.69 | -70.40 | 109.96 | 0.9497 | 189.0 | 147.8 | |
| 5.20 | 181.73 | 8.17 | 284.13 | -17.84 | 353.38 | -70.72 | 108.81 | 0.9507 | 485.9 | 108.0 | |
| 4.00 | 5.62 | 5.60 | 7.87 | -15.00 | 355.57 | -68.53 | 106.05 | 0.9369 | -334.6 | -157.5 | |
| 19.08 | -2.00 | 29.66 | -2.00 | -16.88 | 353.49 | -70.61 | 107.82 | 0.9496 | 651.4 | 999999 | |
| 5.03 | -2.00 | 8.00 | -2.00 | -16.97 | 353.12 | -70.98 | 107.88 | 0.9515 | -247.5 | 999999 | |
| 0.00 | 1.62 | 0.00 | 2.52 | -15.43 | 353.38 | -70.72 | 106.29 | 0.9494 | 250.0 | 154.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
