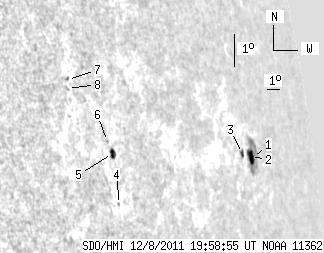

SDO HMI 2011-12-08 19:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.67 | 37.83 | 19.10 | 65.68 | 7.50 | 136.08 | 73.09 | 277.89 | 0.9562 | 27.0 | 76.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-08 19:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.13 | 26.16 | 4.14 | 50.89 | 7.39 | 138.09 | 75.10 | 277.66 | 0.9681 | 250.3 | 61.2 | |
| 3.75 | -1.00 | 7.16 | -1.00 | 7.42 | 137.87 | 74.88 | 277.70 | 0.9672 | -347.2 | 999999 | |
| 1.96 | 2.90 | 3.55 | 5.25 | 7.51 | 137.01 | 74.02 | 277.82 | 0.9633 | -264.7 | -276.7 | |
| 0.00 | 0.34 | 0.00 | 0.38 | 5.98 | 126.33 | 63.34 | 276.71 | 0.8968 | 239.0 | 186.0 | |
| 3.83 | 4.86 | 4.25 | 5.39 | 7.50 | 126.22 | 63.23 | 278.41 | 0.8967 | 333.9 | 71.8 | |
| 0.00 | 1.19 | 0.00 | 1.31 | 7.85 | 125.99 | 62.99 | 278.82 | 0.8951 | 388.0 | 319.6 | |
| 0.00 | 0.85 | 0.00 | 0.88 | 9.71 | 123.96 | 60.97 | 281.10 | 0.8802 | 481.0 | 458.4 | |
| 0.00 | 1.53 | 0.00 | 1.58 | 9.44 | 123.88 | 60.89 | 280.80 | 0.8793 | 485.0 | 407.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
