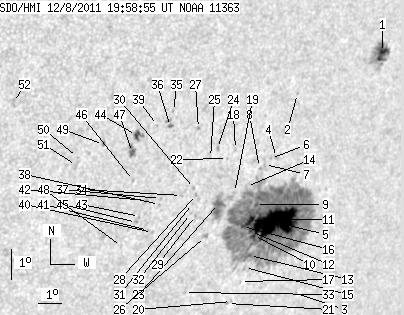

SDO HMI 2011-12-08 19:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 106.68 | 635.69 | 80.85 | 480.75 | -22.42 | 107.95 | 44.96 | 239.73 | 0.7583 | 462.5 | 334.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-08 19:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.61 | 34.42 | 9.85 | 26.85 | -17.52 | 111.35 | 48.36 | 247.14 | 0.7757 | 791.6 | 472.0 | |
| 0.00 | 0.85 | 0.00 | 0.63 | -18.79 | 107.93 | 44.94 | 244.31 | 0.7443 | -282.0 | -277.0 | |
| 0.00 | 1.02 | 0.00 | 0.83 | -25.17 | 110.60 | 47.60 | 237.56 | 0.7942 | -598.0 | -481.0 | |
| 0.00 | 1.28 | 0.00 | 0.95 | -20.80 | 107.72 | 44.73 | 241.67 | 0.7497 | 278.0 | 259.9 | |
| 70.55 | 505.83 | 54.11 | 386.21 | -22.87 | 108.51 | 45.52 | 239.44 | 0.7658 | 1032.5 | 400.5 | |
| 0.00 | 0.68 | 0.00 | 0.51 | -20.83 | 107.47 | 44.47 | 241.53 | 0.7472 | -289.0 | -219.2 | |
| 0.00 | 1.28 | 0.00 | 0.95 | -21.02 | 107.27 | 44.28 | 241.20 | 0.7460 | 178.0 | 144.5 | |
| 0.00 | 0.51 | 0.00 | 0.38 | -21.12 | 107.08 | 44.09 | 241.00 | 0.7445 | -74.0 | -75.3 | |
| 1.28 | -5.00 | 0.96 | -5.00 | -22.30 | 107.37 | 44.37 | 239.65 | 0.7521 | 989.5 | 999999 | |
| 0.94 | -5.00 | 0.71 | -5.00 | -23.29 | 107.69 | 44.70 | 238.57 | 0.7595 | 758.7 | 999999 | |
| 4.60 | -5.00 | 3.46 | -5.00 | -22.81 | 107.35 | 44.36 | 239.01 | 0.7541 | 1137.8 | 999999 | |
| 1.36 | -5.00 | 1.03 | -5.00 | -23.16 | 107.50 | 44.51 | 238.64 | 0.7571 | 918.2 | 999999 | |
| 0.94 | -5.00 | 0.72 | -5.00 | -23.94 | 107.79 | 44.80 | 237.82 | 0.7632 | 360.5 | 999999 | |
| 0.00 | 1.45 | 0.00 | 1.07 | -21.72 | 106.74 | 43.75 | 240.09 | 0.7434 | 412.0 | 362.1 | |
| 0.00 | 1.45 | 0.00 | 1.11 | -24.32 | 107.73 | 44.74 | 237.33 | 0.7643 | 53.0 | 108.7 | |
| 0.85 | -5.00 | 0.64 | -5.00 | -23.00 | 107.07 | 44.08 | 238.64 | 0.7522 | 930.0 | 999999 | |
| 0.00 | 0.68 | 0.00 | 0.52 | -24.78 | 107.76 | 44.76 | 236.79 | 0.7665 | 210.0 | 244.6 | |
| 0.00 | 1.02 | 0.00 | 0.74 | -20.55 | 105.83 | 42.84 | 241.17 | 0.7291 | -490.0 | -445.6 | |
| 0.00 | 1.28 | 0.00 | 0.94 | -21.91 | 106.28 | 43.29 | 239.64 | 0.7396 | 505.0 | 430.5 | |
| 0.00 | 1.19 | 0.00 | 0.92 | -25.43 | 107.65 | 44.65 | 235.95 | 0.7684 | -412.0 | -351.6 | |
| 0.00 | 0.77 | 0.00 | 0.59 | -25.50 | 107.49 | 44.50 | 235.80 | 0.7673 | -655.0 | -551.9 | |
| 0.00 | 0.77 | 0.00 | 0.55 | -20.83 | 105.58 | 42.59 | 240.69 | 0.7277 | -352.0 | -259.2 | |
| 4.35 | 27.95 | 3.16 | 20.40 | -22.26 | 105.72 | 42.73 | 238.93 | 0.7354 | 510.5 | 449.2 | |
| 0.00 | 1.96 | 0.00 | 1.40 | -20.52 | 105.05 | 42.05 | 240.85 | 0.7207 | -659.0 | -513.9 | |
| 0.00 | 0.77 | 0.00 | 0.55 | -20.80 | 104.85 | 41.85 | 240.38 | 0.7198 | -431.0 | -371.9 | |
| 0.00 | 2.98 | 0.00 | 2.18 | -23.32 | 105.56 | 42.57 | 237.53 | 0.7387 | 568.0 | 486.6 | |
| 0.00 | 1.28 | 0.00 | 0.89 | -19.89 | 104.04 | 41.05 | 241.19 | 0.7071 | -691.0 | -567.3 | |
| 0.00 | 1.28 | 0.00 | 0.91 | -21.97 | 104.66 | 41.67 | 238.78 | 0.7233 | -349.0 | -293.9 | |
| 0.00 | 0.68 | 0.00 | 0.49 | -22.65 | 104.87 | 41.87 | 238.03 | 0.7285 | 136.0 | 126.4 | |
| 0.00 | 1.11 | 0.00 | 0.79 | -21.78 | 104.51 | 41.51 | 238.95 | 0.7208 | -525.0 | -377.1 | |
| 0.00 | 1.02 | 0.00 | 0.73 | -22.26 | 104.59 | 41.60 | 238.38 | 0.7239 | -377.0 | -306.0 | |
| 0.00 | 0.68 | 0.00 | 0.49 | -22.58 | 104.63 | 41.63 | 237.99 | 0.7258 | -265.0 | -238.0 | |
| 0.00 | 1.28 | 0.00 | 0.95 | -25.14 | 105.39 | 42.40 | 235.20 | 0.7457 | 500.0 | 475.7 | |
| 0.00 | 1.28 | 0.00 | 0.91 | -22.01 | 104.03 | 41.04 | 238.42 | 0.7169 | -686.0 | -517.2 | |
| 0.00 | 1.02 | 0.00 | 0.70 | -19.35 | 102.84 | 39.85 | 241.31 | 0.6915 | -637.0 | -444.2 | |
| 1.45 | 4.52 | 0.99 | 3.09 | -19.82 | 102.86 | 39.87 | 240.69 | 0.6939 | -681.3 | -630.4 | |
| 0.00 | 1.19 | 0.00 | 0.83 | -22.10 | 103.18 | 40.19 | 237.86 | 0.7085 | -554.0 | -553.2 | |
| 0.00 | 1.02 | 0.00 | 0.72 | -22.29 | 103.21 | 40.22 | 237.62 | 0.7097 | -624.0 | -524.8 | |
| 0.00 | 0.94 | 0.00 | 0.64 | -19.79 | 102.32 | 39.33 | 240.45 | 0.6878 | -629.0 | -481.2 | |
| 0.00 | 1.11 | 0.00 | 0.78 | -23.19 | 103.23 | 40.24 | 236.49 | 0.7146 | -476.0 | -407.0 | |
| 0.00 | 1.19 | 0.00 | 0.84 | -23.13 | 103.04 | 40.05 | 236.46 | 0.7123 | -389.0 | -307.6 | |
| 0.00 | 1.02 | 0.00 | 0.71 | -22.16 | 102.62 | 39.63 | 237.47 | 0.7029 | -719.0 | -654.2 | |
| 0.00 | 1.11 | 0.00 | 0.77 | -22.68 | 102.51 | 39.51 | 236.75 | 0.7044 | -694.0 | -586.6 | |
| 3.66 | 6.48 | 2.47 | 4.37 | -20.10 | 101.56 | 38.57 | 239.62 | 0.6810 | -864.3 | -690.8 | |
| 0.00 | 1.28 | 0.00 | 0.89 | -22.87 | 102.45 | 39.46 | 236.47 | 0.7048 | -732.0 | -605.9 | |
| 0.00 | 1.11 | 0.00 | 0.76 | -21.53 | 101.88 | 38.88 | 237.90 | 0.6917 | -733.0 | -619.8 | |
| 2.73 | 6.30 | 1.84 | 4.26 | -20.64 | 101.56 | 38.57 | 238.90 | 0.6837 | -703.3 | -715.3 | |
| 0.00 | 1.02 | 0.00 | 0.71 | -23.64 | 102.10 | 39.10 | 235.28 | 0.7054 | -503.0 | -418.7 | |
| 1.36 | 1.79 | 0.91 | 1.19 | -20.39 | 100.32 | 37.33 | 238.54 | 0.6687 | -687.1 | -727.2 | |
| 0.00 | 0.94 | 0.00 | 0.62 | -20.80 | 99.41 | 36.42 | 237.43 | 0.6609 | -595.0 | -493.5 | |
| 0.00 | 3.07 | 0.00 | 2.02 | -21.05 | 99.44 | 36.45 | 237.11 | 0.6627 | -614.0 | -385.4 | |
| 0.00 | 3.83 | 0.00 | 2.41 | -19.07 | 96.51 | 33.52 | 238.01 | 0.6177 | -155.0 | -212.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
