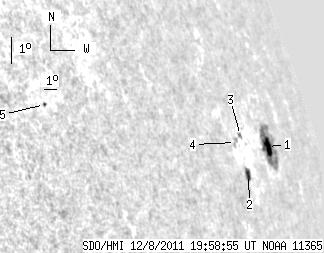

SDO HMI 2011-12-08 19:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.01 | 52.23 | 22.76 | 108.69 | 16.78 | 138.39 | 75.40 | 287.35 | 0.9709 | -89.6 | -50.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-08 19:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.13 | 40.13 | 13.31 | 88.47 | 16.82 | 139.18 | 76.19 | 287.31 | 0.9746 | -482.3 | -101.0 | |
| 4.69 | 5.20 | 8.25 | 9.15 | 15.95 | 135.99 | 73.00 | 286.66 | 0.9610 | 353.5 | 267.5 | |
| 0.00 | 2.13 | 0.00 | 3.85 | 17.16 | 136.33 | 73.34 | 287.88 | 0.9630 | 159.0 | 141.9 | |
| 0.00 | 3.32 | 0.00 | 5.76 | 16.94 | 135.57 | 72.58 | 287.72 | 0.9595 | 570.0 | 410.8 | |
| 1.19 | 1.45 | 1.20 | 1.46 | 18.09 | 121.81 | 58.82 | 290.92 | 0.8727 | 463.4 | 414.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
