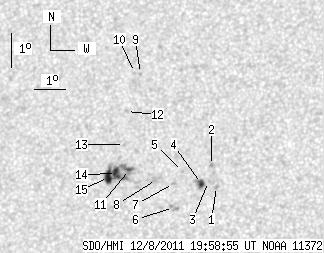

SDO HMI 2011-12-08 19:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.81 | 62.96 | 9.55 | 33.67 | 7.97 | 42.25 | -20.75 | 68.30 | 0.3792 | 72.4 | 175.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-08 19:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.62 | 0.00 | 0.85 | 7.61 | 44.66 | -18.34 | 66.89 | 0.3406 | -1002.0 | -800.8 | |
| 0.00 | 1.87 | 0.00 | 0.99 | 8.23 | 44.47 | -18.52 | 65.40 | 0.3473 | -1083.0 | -830.3 | |
| 0.00 | 0.85 | 0.00 | 0.45 | 7.75 | 44.40 | -18.59 | 66.76 | 0.3454 | -874.0 | -766.1 | |
| 3.41 | 6.39 | 1.80 | 3.38 | 7.70 | 44.18 | -18.81 | 67.15 | 0.3483 | -1044.8 | -763.5 | |
| 0.00 | 0.77 | 0.00 | 0.41 | 8.05 | 43.56 | -19.43 | 66.85 | 0.3598 | -695.0 | -549.6 | |
| 0.00 | 4.43 | 0.00 | 2.35 | 6.98 | 43.33 | -19.66 | 69.89 | 0.3572 | -771.0 | -728.9 | |
| 0.00 | 1.53 | 0.00 | 0.81 | 7.70 | 43.30 | -19.70 | 68.04 | 0.3617 | -790.0 | -508.3 | |
| 0.00 | 5.88 | 0.00 | 3.13 | 7.81 | 42.75 | -20.24 | 68.26 | 0.3706 | 177.0 | 272.1 | |
| 0.00 | 0.77 | 0.00 | 0.41 | 10.99 | 42.04 | -20.95 | 61.41 | 0.4015 | -769.0 | -587.3 | |
| 0.00 | 0.68 | 0.00 | 0.37 | 11.02 | 41.85 | -21.15 | 61.55 | 0.4045 | -541.0 | -516.5 | |
| 1.79 | 35.70 | 0.96 | 19.19 | 8.11 | 41.88 | -21.12 | 68.31 | 0.3855 | 1059.3 | 733.7 | |
| 0.00 | 1.62 | 0.00 | 0.87 | 9.85 | 41.67 | -21.32 | 64.39 | 0.3990 | 880.0 | 651.8 | |
| 0.00 | 0.85 | 0.00 | 0.46 | 8.86 | 41.67 | -21.32 | 66.70 | 0.3929 | 748.0 | 552.2 | |
| 5.96 | -11.00 | 3.21 | -11.00 | 7.99 | 41.47 | -21.53 | 68.96 | 0.3910 | 1205.0 | 999999 | |
| 6.65 | -11.00 | 3.58 | -11.00 | 7.88 | 41.22 | -21.78 | 69.45 | 0.3942 | 894.9 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
