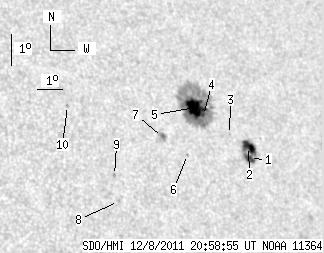

SDO HMI 2011-12-08 20:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33.66 | 141.34 | 23.48 | 97.91 | 18.43 | 103.43 | 40.99 | 296.99 | 0.7006 | -204.5 | -235.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-08 20:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.03 | 21.47 | 3.54 | 15.17 | 17.16 | 105.09 | 42.65 | 294.54 | 0.7141 | 776.8 | 580.5 | |
| 8.61 | -1.00 | 6.09 | -1.00 | 17.53 | 105.16 | 42.72 | 295.01 | 0.7162 | 799.4 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.54 | 17.90 | 104.47 | 42.03 | 295.80 | 0.7100 | -201.0 | -193.2 | |
| 0.85 | 108.80 | 0.59 | 75.36 | 18.49 | 103.56 | 41.12 | 297.00 | 0.7023 | -774.1 | -312.0 | |
| 19.17 | -4.00 | 13.26 | -4.00 | 18.74 | 103.30 | 40.86 | 297.46 | 0.7005 | -1044.0 | 999999 | |
| 0.00 | 0.85 | 0.00 | 0.58 | 17.28 | 102.56 | 40.12 | 295.81 | 0.6859 | -509.0 | -402.0 | |
| 0.00 | 5.96 | 0.00 | 4.01 | 17.80 | 101.69 | 39.25 | 296.96 | 0.6782 | -861.0 | -659.0 | |
| 0.00 | 1.28 | 0.00 | 0.82 | 15.82 | 99.49 | 37.05 | 295.25 | 0.6432 | 684.0 | 610.1 | |
| 0.00 | 1.19 | 0.00 | 0.77 | 16.62 | 99.51 | 37.07 | 296.40 | 0.6472 | 778.0 | 677.5 | |
| 0.00 | 1.02 | 0.00 | 0.66 | 18.79 | 98.21 | 35.77 | 300.26 | 0.6430 | 761.0 | 640.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
