SDO HMI 2011-12-08 20:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.48 | 48.65 | 21.96 | 105.38 | 16.75 | 138.49 | 76.05 | 287.26 | 0.9735 | -45.9 | -40.7 | |
|
previous
or next observation for the same group /

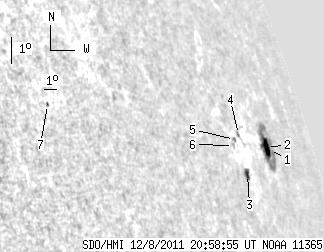

back to the solar disc SDO HMI 2011-12-08 20:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.77 | 37.49 | 1.78 | 86.13 | 16.73 | 139.59 | 77.15 | 287.15 | 0.9781 | 281.4 | -97.5 | |
| 5.71 | -1.00 | 12.90 | -1.00 | 16.79 | 139.25 | 76.81 | 287.23 | 0.9769 | -472.0 | 999999 | |
| 4.00 | 4.77 | 7.28 | 8.68 | 15.95 | 135.97 | 73.53 | 286.61 | 0.9634 | 390.7 | 156.2 | |
| 0.00 | 2.04 | 0.00 | 3.80 | 17.19 | 136.25 | 73.81 | 287.87 | 0.9651 | 217.0 | 166.8 | |
| 0.00 | 1.62 | 0.00 | 2.90 | 17.03 | 135.64 | 73.20 | 287.76 | 0.9624 | 494.0 | 400.5 | |
| 0.00 | 1.45 | 0.00 | 2.56 | 16.84 | 135.34 | 72.90 | 287.59 | 0.9609 | 319.0 | 386.5 | |
| 0.00 | 1.28 | 0.00 | 1.31 | 18.09 | 121.80 | 59.36 | 290.81 | 0.8770 | 521.0 | 438.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
