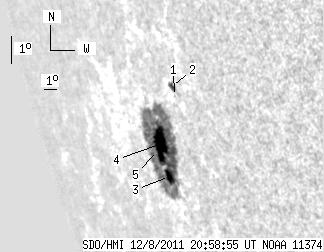

SDO HMI 2011-12-08 20:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.61 | 200.83 | 51.08 | 290.18 | -16.99 | 353.45 | -68.99 | 108.10 | 0.9408 | 480.2 | 122.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-08 20:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.68 | 0.00 | 0.89 | -15.37 | 355.60 | -66.84 | 106.63 | 0.9268 | -233.0 | -163.1 | |
| 3.24 | 4.52 | 4.22 | 5.89 | -15.07 | 355.56 | -66.87 | 106.30 | 0.9269 | -393.7 | -311.6 | |
| 5.79 | 195.63 | 8.44 | 283.40 | -17.85 | 353.34 | -69.10 | 109.00 | 0.9420 | 529.0 | 126.7 | |
| 23.00 | -3.00 | 33.14 | -3.00 | -16.82 | 353.49 | -68.95 | 107.93 | 0.9405 | 713.4 | 999999 | |
| 3.58 | -3.00 | 5.28 | -3.00 | -17.04 | 352.96 | -69.48 | 108.10 | 0.9436 | -228.3 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
