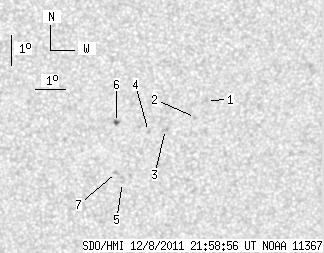

SDO HMI 2011-12-08 21:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.70 | 12.01 | 0.96 | 6.79 | -25.99 | 74.69 | 12.80 | 204.49 | 0.4828 | -133.2 | -124.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-08 21:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.02 | 0.00 | 0.58 | -24.88 | 76.58 | 14.69 | 208.73 | 0.4807 | 827.0 | 592.4 | |
| 0.00 | 1.36 | 0.00 | 0.77 | -25.43 | 76.28 | 14.39 | 207.64 | 0.4858 | 664.0 | 596.9 | |
| 0.00 | 1.96 | 0.00 | 1.11 | -25.82 | 75.31 | 13.42 | 205.68 | 0.4843 | 427.0 | 476.9 | |
| 0.00 | 1.79 | 0.00 | 1.01 | -25.89 | 74.75 | 12.86 | 204.68 | 0.4815 | -555.0 | -537.6 | |
| 0.00 | 1.02 | 0.00 | 0.58 | -27.57 | 74.05 | 12.17 | 202.02 | 0.5004 | -582.0 | -472.1 | |
| 1.70 | 3.24 | 0.96 | 1.82 | -25.59 | 73.64 | 11.75 | 203.08 | 0.4706 | -904.3 | -673.7 | |
| 0.00 | 1.62 | 0.00 | 0.92 | -27.24 | 73.81 | 11.93 | 201.91 | 0.4945 | -840.0 | -711.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
