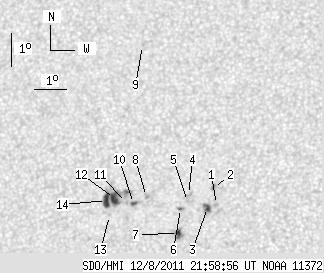

SDO HMI 2011-12-08 21:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.79 | 63.81 | 13.15 | 33.89 | 7.86 | 42.30 | -19.58 | 67.44 | 0.3611 | 173.7 | 196.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-08 21:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.71 | 7.80 | 44.61 | -17.28 | 65.09 | 0.3260 | -1019.0 | -845.9 | |
| 0.00 | 2.64 | 0.00 | 1.39 | 8.31 | 44.49 | -17.40 | 63.83 | 0.3311 | -1120.0 | -813.7 | |
| 3.83 | 6.48 | 2.01 | 3.40 | 7.71 | 44.33 | -17.56 | 65.68 | 0.3295 | -1102.3 | -835.6 | |
| 0.00 | 2.98 | 0.00 | 1.57 | 8.10 | 43.72 | -18.17 | 65.33 | 0.3413 | -572.0 | -543.3 | |
| 0.00 | 1.19 | 0.00 | 0.63 | 7.89 | 43.69 | -18.19 | 65.92 | 0.3402 | -718.0 | -550.1 | |
| 1.28 | 1.87 | 0.67 | 0.99 | 7.68 | 43.48 | -18.40 | 66.72 | 0.3421 | -671.1 | -534.7 | |
| 3.92 | 6.13 | 2.06 | 3.23 | 6.94 | 43.45 | -18.43 | 68.81 | 0.3382 | -894.3 | -698.8 | |
| 0.00 | 2.22 | 0.00 | 1.18 | 8.04 | 42.40 | -19.49 | 66.92 | 0.3607 | 981.0 | 738.8 | |
| 0.00 | 0.43 | 0.00 | 0.23 | 12.57 | 41.97 | -19.92 | 56.68 | 0.3996 | 806.0 | 692.4 | |
| 2.30 | 4.26 | 1.22 | 2.26 | 7.83 | 41.99 | -19.89 | 67.86 | 0.3655 | 1045.0 | 620.2 | |
| 0.00 | 1.02 | 0.00 | 0.54 | 7.86 | 41.77 | -20.12 | 67.99 | 0.3691 | 878.0 | 705.8 | |
| 6.73 | 32.21 | 3.59 | 17.21 | 7.98 | 41.38 | -20.50 | 68.06 | 0.3756 | 1193.2 | 690.3 | |
| 0.00 | 1.02 | 0.00 | 0.55 | 7.47 | 41.25 | -20.64 | 69.45 | 0.3748 | 350.0 | 329.7 | |
| 6.73 | -12.00 | 3.60 | -12.00 | 7.92 | 41.13 | -20.76 | 68.43 | 0.3791 | 843.6 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
