SDO HMI 2011-12-08 21:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 34.85 | 204.93 | 48.95 | 289.15 | -17.01 | 353.38 | -68.50 | 108.17 | 0.9380 | 494.0 | 153.2 | |
|
previous
or next observation for the same group /

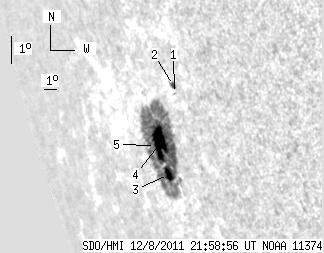

back to the solar disc SDO HMI 2011-12-08 21:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.94 | 0.00 | 1.20 | -15.35 | 355.62 | -66.27 | 106.66 | 0.9232 | -301.0 | -232.5 | |
| 2.47 | 2.64 | 3.14 | 3.36 | -15.10 | 355.69 | -66.19 | 106.41 | 0.9225 | -436.6 | -211.2 | |
| 5.37 | 201.35 | 7.64 | 284.59 | -17.85 | 353.31 | -68.57 | 109.06 | 0.9390 | 531.6 | 155.5 | |
| 23.01 | -3.00 | 32.40 | -3.00 | -16.86 | 353.43 | -68.46 | 108.02 | 0.9377 | 727.3 | 999999 | |
| 4.00 | -3.00 | 5.77 | -3.00 | -16.95 | 352.92 | -68.96 | 108.06 | 0.9406 | -221.4 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
