SDO HMI 2011-12-08 22:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.73 | 45.42 | 15.38 | 106.04 | 16.68 | 138.25 | 76.91 | 287.13 | 0.9765 | -186.6 | -14.0 | |
|
previous
or next observation for the same group /

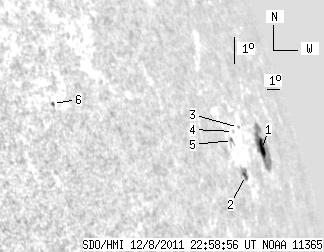

back to the solar disc SDO HMI 2011-12-08 22:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.11 | 34.43 | 12.53 | 86.07 | 16.70 | 139.07 | 77.73 | 287.08 | 0.9801 | -451.0 | -80.1 | |
| 1.28 | 5.37 | 2.49 | 10.45 | 15.89 | 135.98 | 74.64 | 286.47 | 0.9683 | 326.8 | 334.0 | |
| 0.00 | 0.94 | 0.00 | 1.95 | 17.38 | 136.82 | 75.48 | 287.93 | 0.9721 | -73.0 | -125.7 | |
| 0.00 | 1.11 | 0.00 | 2.18 | 17.25 | 136.06 | 74.72 | 287.86 | 0.9690 | 202.0 | 172.1 | |
| 0.00 | 1.87 | 0.00 | 3.59 | 16.97 | 135.62 | 74.29 | 287.61 | 0.9671 | 424.0 | 361.4 | |
| 0.34 | 1.70 | 0.36 | 1.80 | 18.09 | 121.78 | 60.44 | 290.61 | 0.8854 | 491.2 | 372.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
