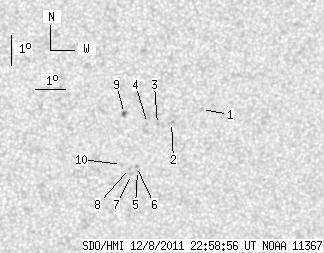

SDO HMI 2011-12-08 22:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.62 | 14.32 | 0.91 | 8.13 | -26.52 | 74.40 | 13.07 | 204.45 | 0.4915 | -414.2 | -316.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-08 22:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.28 | 0.00 | 0.72 | -25.44 | 76.20 | 14.87 | 208.40 | 0.4891 | 728.0 | 538.2 | |
| 0.00 | 1.96 | 0.00 | 1.11 | -25.86 | 75.24 | 13.90 | 206.42 | 0.4880 | 620.0 | 507.2 | |
| 0.00 | 1.28 | 0.00 | 0.72 | -25.93 | 74.77 | 13.44 | 205.60 | 0.4857 | -602.0 | -513.3 | |
| 0.00 | 0.51 | 0.00 | 0.29 | -25.89 | 74.43 | 13.10 | 205.07 | 0.4830 | -632.0 | -581.2 | |
| 0.00 | 1.62 | 0.00 | 0.93 | -27.45 | 74.27 | 12.94 | 203.37 | 0.5031 | -533.0 | -536.3 | |
| 0.00 | 0.94 | 0.00 | 0.54 | -27.31 | 74.22 | 12.89 | 203.40 | 0.5010 | -808.0 | -704.4 | |
| 0.00 | 1.62 | 0.00 | 0.93 | -27.58 | 74.08 | 12.75 | 202.95 | 0.5038 | -594.0 | -534.4 | |
| 0.00 | 1.02 | 0.00 | 0.58 | -27.38 | 73.99 | 12.66 | 202.98 | 0.5005 | -719.0 | -684.1 | |
| 1.62 | 2.47 | 0.91 | 1.39 | -25.57 | 73.62 | 12.29 | 204.03 | 0.4734 | -888.1 | -750.8 | |
| 0.00 | 1.62 | 0.00 | 0.92 | -27.25 | 73.71 | 12.37 | 202.63 | 0.4970 | -757.0 | -617.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
