SDO HMI 2011-12-08 22:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.37 | 0.00 | 6.71 | -18.21 | 77.42 | 16.09 | 220.14 | 0.4101 | -222.5 | -122.3 | |
|
previous
or next observation for the same group /

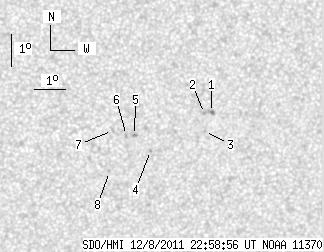

back to the solar disc SDO HMI 2011-12-08 22:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.73 | 0.00 | 1.49 | -17.62 | 79.04 | 17.71 | 223.85 | 0.4202 | 934.0 | 756.7 | |
| 0.00 | 1.11 | 0.00 | 0.60 | -17.65 | 78.82 | 17.48 | 223.45 | 0.4180 | 890.0 | 647.0 | |
| 0.00 | 1.11 | 0.00 | 0.61 | -18.21 | 78.87 | 17.54 | 222.58 | 0.4249 | 650.0 | 452.3 | |
| 0.00 | 1.11 | 0.00 | 0.60 | -18.80 | 77.18 | 15.84 | 218.81 | 0.4141 | -738.0 | -563.8 | |
| 0.00 | 1.96 | 0.00 | 1.06 | -18.33 | 76.62 | 15.28 | 218.59 | 0.4029 | -818.0 | -695.8 | |
| 0.00 | 1.79 | 0.00 | 0.97 | -18.33 | 76.36 | 15.02 | 218.12 | 0.4003 | -852.0 | -558.3 | |
| 0.00 | 1.62 | 0.00 | 0.87 | -18.18 | 75.89 | 14.56 | 217.53 | 0.3938 | -1014.0 | -771.0 | |
| 0.00 | 0.94 | 0.00 | 0.51 | -19.46 | 75.91 | 14.58 | 215.55 | 0.4099 | -832.0 | -630.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
